Dakota NDT

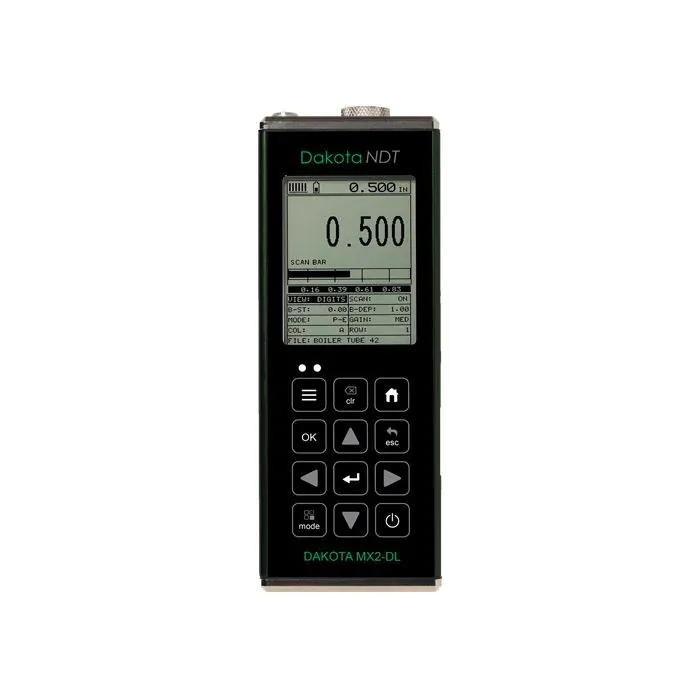

Dakota NDT MX2-DL Ultrasonic Thickness Gauge
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Display
1/8 in VGA grayscale 240×160; EL backlight
Type
Ultrasonic corrosion / thickness gauge with A/B-scan (MX2-DL)
Pulse Echo Range
0.025 in to 100 ft (0.63 mm to 30.48 m)
Echo Echo Range
0.100 to 6.0 in (2.54 to 152.4 mm) thru-paint (coating dependent)
Resolution
±0.001 in (0.01 mm)
Velocity Range
0.0122–0.7300 in/µs (309.88–18542 m/s)
| Parámetro | Valor |
|---|---|
| Display | 1/8 in VGA grayscale 240×160; EL backlight |
| Type | Ultrasonic corrosion / thickness gauge with A/B-scan (MX2-DL) |
| Pulse Echo Range | 0.025 in to 100 ft (0.63 mm to 30.48 m) |
| Echo Echo Range | 0.100 to 6.0 in (2.54 to 152.4 mm) thru-paint (coating dependent) |
| Resolution | ±0.001 in (0.01 mm) |
| Velocity Range | 0.0122–0.7300 in/µs (309.88–18542 m/s) |
| Size Weight | 2.5×6.5×1.24 in; 13.5 oz with batteries |
| Power | 3× AA; alkaline ~35 h; USB line power |
| Memory | 64 custom setups; grid datalogger; bitmap capture |
| Document | Dakota MX2-DL datasheet + manual |
