Waygate Technologies

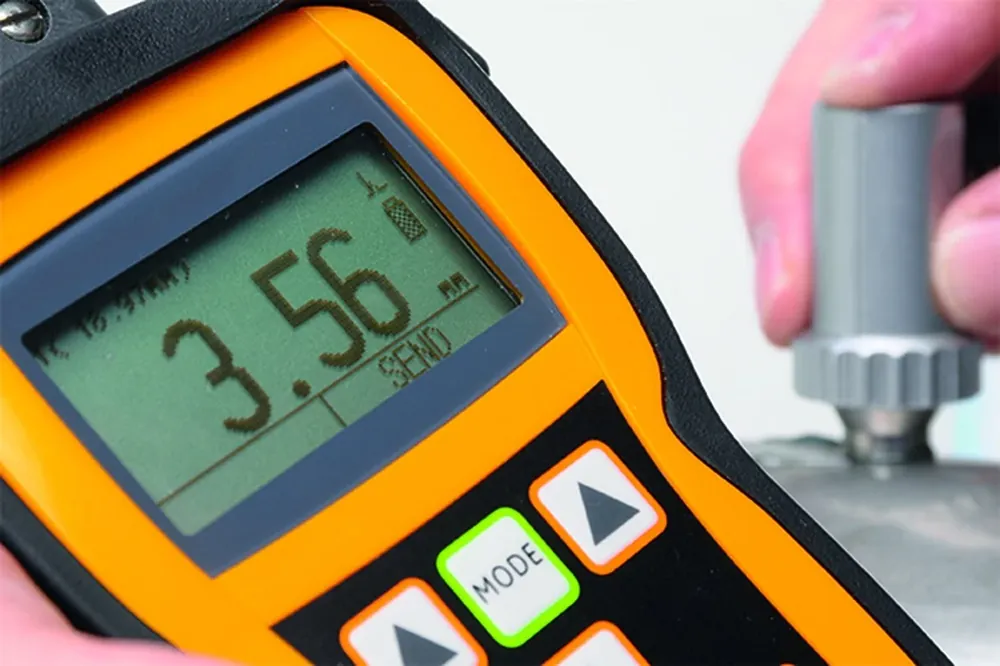

Waygate Technologies DM5E Ultrasonic Thickness Gauge
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
0.60–508 mm (IP to 1st BW); 2.00–127 mm dual-multi; coating 0.3–2.5 mm
Display
64×128 graphical LCD with backlight; NORMAL and B-SCAN views
Type
Portable ultrasonic corrosion thickness gauge (DM5E family)
Resolution
0.01 mm default (selectable 0.01 / 0.1 mm)
Power
2× AA; ~60 hours typical
Protection
IP54; operating −10 to +50 °C
| Parámetro | Valor |
|---|---|
| Measuring range | 0.60–508 mm (IP to 1st BW); 2.00–127 mm dual-multi; coating 0.3–2.5 mm |
| Display | 64×128 graphical LCD with backlight; NORMAL and B-SCAN views |
| Type | Portable ultrasonic corrosion thickness gauge (DM5E family) |
| Resolution | 0.01 mm default (selectable 0.01 / 0.1 mm) |
| Power | 2× AA; ~60 hours typical |
| Protection | IP54; operating −10 to +50 °C |
| Io | Dual Lemo 00 transducer; Mini-USB |
| Data Recorder | Optional 50,000 readings grid file |
| Document | Waygate/Baker Hughes DM5E brochure BHCS38599 + operating manual EN + tech specs |
