Extech

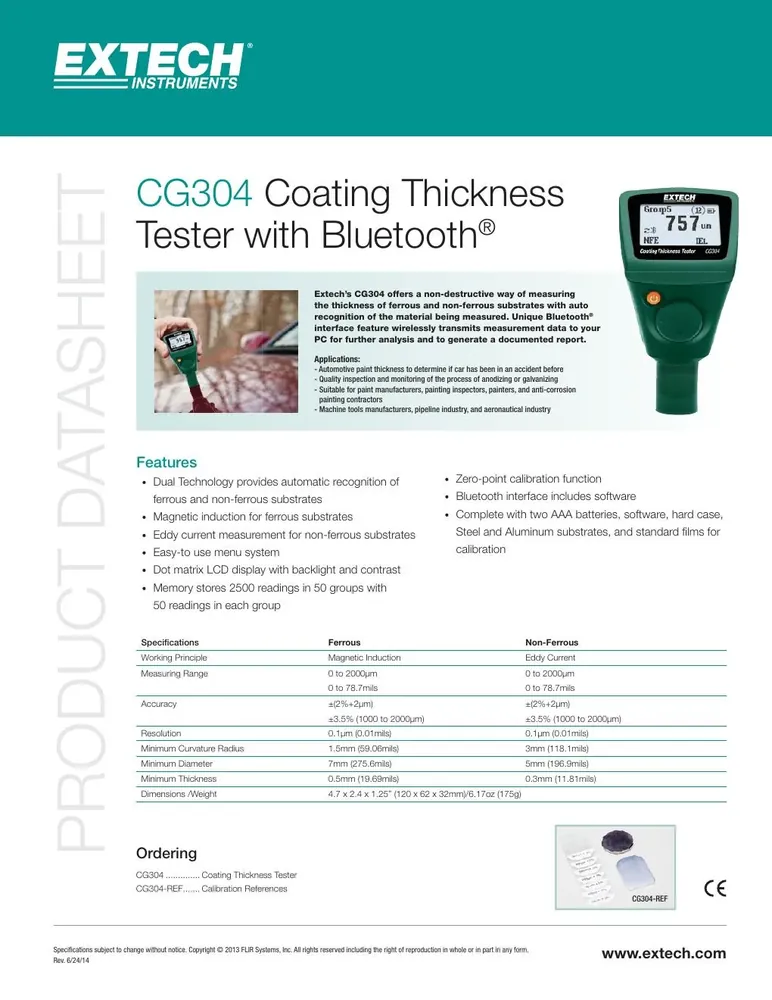

Extech CG304 Coating Thickness Meter
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Accuracy
±(2% + 2 μm); ±3.5% for 1000–2000 μm band (product page)
Display
Dot-matrix LCD with backlight and contrast
Ferrous Range
0 to 2000 μm (0 to 78.7 mils); magnetic induction
Non Ferrous Range
0 to 2000 μm (0 to 78.7 mils); eddy current
Resolution
0.1 μm (0.01 mils)
Memory
2500 readings in 50 groups × 50 readings
| Parámetro | Valor |
|---|---|
| Accuracy | ±(2% + 2 μm); ±3.5% for 1000–2000 μm band (product page) |
| Display | Dot-matrix LCD with backlight and contrast |
| Ferrous Range | 0 to 2000 μm (0 to 78.7 mils); magnetic induction |
| Non Ferrous Range | 0 to 2000 μm (0 to 78.7 mils); eddy current |
| Resolution | 0.1 μm (0.01 mils) |
| Memory | 2500 readings in 50 groups × 50 readings |
| Connectivity | Bluetooth wireless transfer to PC with included software |
| Min Substrate | Ferrous min thickness 0.5 mm / curvature 1.5 mm / diameter 7 mm; Non-ferrous 0.3 mm / 3 mm / 5 mm |
| Power | 2 × AAA (1.5 V) |
| Dimensions | 4.7 × 2.4 × 1.25 in (120 × 62 × 32 mm) |
| Weight | 6.17 oz (175 g) |
| Certifications | CE |
