ABB

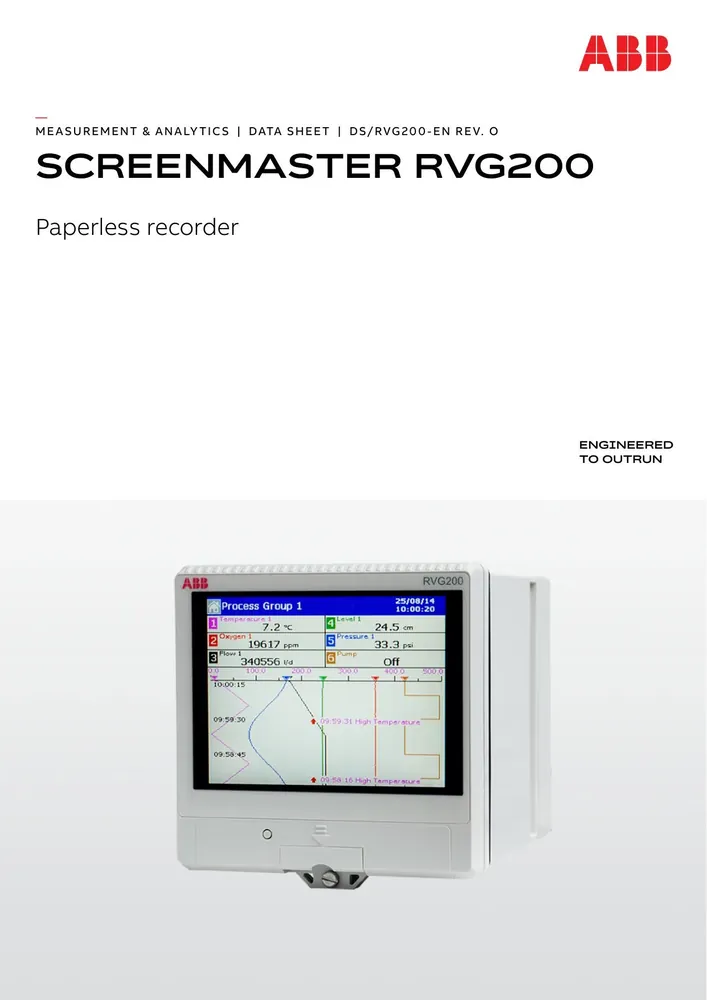

ABB ScreenMaster RVG200 Paperless Recorder
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Supply
100–240 V AC ±10% (90–264 V), 50/60 Hz
Display
Touchscreen TFT with swipe gestures; chart, bargraph, indicator and overview views; dual USB ports
Channels
Up to 24 software recording channels; 6/12/18/24 universal analog inputs
Input Types
Universal inputs: mA, mV, TC, RTD, voltage, resistance, digital; optional 24 V transmitter PSU; Modbus TCP/RS485
Memory
256 MB internal flash standard, upgradeable to 2 GB; SD card and USB archive
Communications
Standard Ethernet with web server/FTP; Modbus TCP master/slave; optional RS485
| Parámetro | Valor |
|---|---|
| Supply | 100–240 V AC ±10% (90–264 V), 50/60 Hz |
| Display | Touchscreen TFT with swipe gestures; chart, bargraph, indicator and overview views; dual USB ports |
| Channels | Up to 24 software recording channels; 6/12/18/24 universal analog inputs |
| Input Types | Universal inputs: mA, mV, TC, RTD, voltage, resistance, digital; optional 24 V transmitter PSU; Modbus TCP/RS485 |
| Memory | 256 MB internal flash standard, upgradeable to 2 GB; SD card and USB archive |
| Communications | Standard Ethernet with web server/FTP; Modbus TCP master/slave; optional RS485 |
| Ingress Protection | IP66 and NEMA 4X front face |
| Panel Cutout | 138 × 138 mm (5.43 × 5.43 in) |
| Functions | Up to 48 totalizers/timers; AMS 2750 E compliant high-accuracy inputs; encrypted secure archive |
