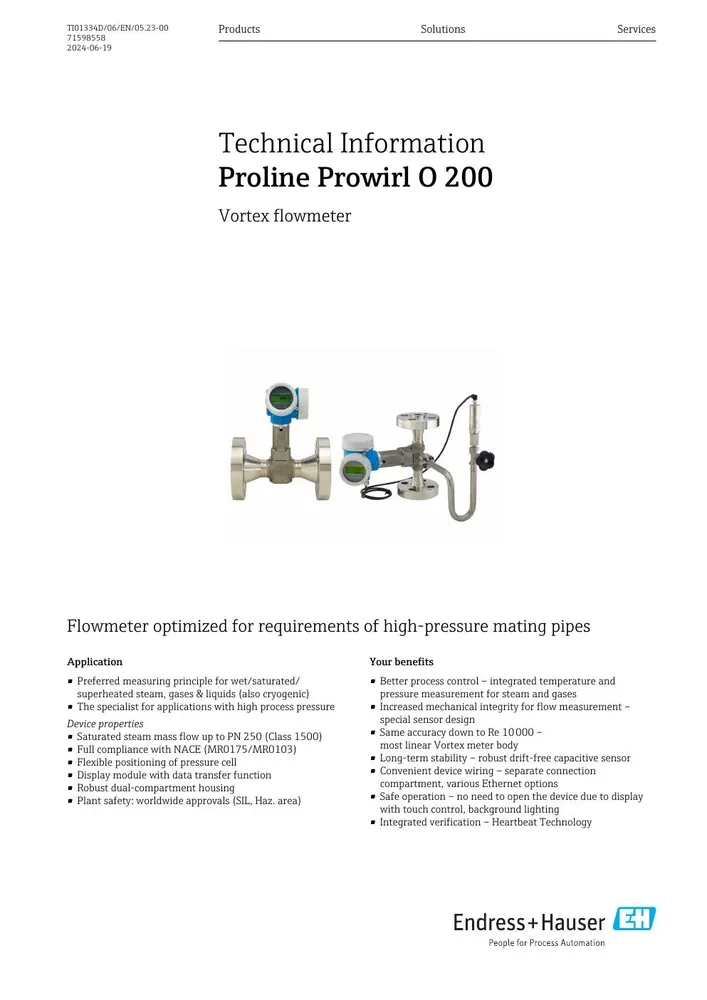

Endress+Hauser Proline Prowirl O 200 Vortex Flow Meter

SKU · 47453 · Proline Prowirl O 200 · Marca: Endress+Hauser

Disponible

Cotización a solicitud

Sin pago en línea · líneas en BOM RFQ

Cantidad

RFQ solo líneas BOM. Envíe para cotización de ingeniería.

Parámetros clave

Wetted parts

Measuring tube 1.4408 (CF3M); DSC sensor Alloy 718; process connection 1.4404/F316/F316L

Protection

IP66/67, Type 4X enclosure

Approvals

SIL and worldwide Haz.area options

Measuring Principle

Karman vortex street

Nominal Diameter

DN 15 to 300 (½ to 12") flange or butt-weld

Volume Flow Accuracy Liquid

±0.75 %

Parámetro	Valor
Wetted parts	Measuring tube 1.4408 (CF3M); DSC sensor Alloy 718; process connection 1.4404/F316/F316L
Protection	IP66/67, Type 4X enclosure
Approvals	SIL and worldwide Haz.area options
Measuring Principle	Karman vortex street
Nominal Diameter	DN 15 to 300 (½ to 12") flange or butt-weld
Volume Flow Accuracy Liquid	±0.75 %
Volume Flow Accuracy Gas Steam	±1.00 %
Mass Flow Accuracy Saturated Steam	±1.7 % (temperature compensated); ±1.5 % (temperature/pressure compensated)
Medium Temperature Range	Standard –40 to +260 °C; high/low-temp option –200 to +400 °C
Max Process Pressure	PN 250, Class 1500, 40K
Special Features	High-pressure specialist; NACE MR0175/MR0103; rotatable pressure cell; Heartbeat Technology
Outputs	4–20 mA HART; pulse/frequency/switch; Ethernet options
Power Supply	Loop-powered Proline 200
