GF Signet

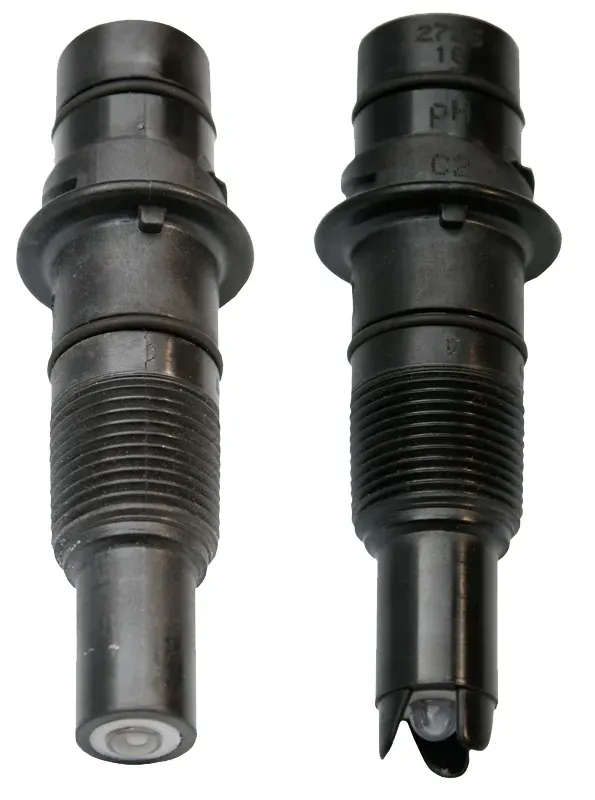

GF Signet 2724-2726 pH/ORP Electrodes
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Process connection
¾ in NPT or ISO 7/1-R 3/4; mounts in GF fittings ½–4 in
Type
General-purpose DryLoc pH/ORP electrodes (2724 flat pH, 2726 bulb pH, 2725 flat ORP)
Ph Range
0 to 14 pH
Orp Range
±2000 mV
Connector
Patented DryLoc gold-plated connector; mates to 2751 Smart Sensor Electronics
Body
PPS threaded sensor body; UHMW PE reference junction; FKM seals
| Parámetro | Valor |
|---|---|
| Process connection | ¾ in NPT or ISO 7/1-R 3/4; mounts in GF fittings ½–4 in |
| Type | General-purpose DryLoc pH/ORP electrodes (2724 flat pH, 2726 bulb pH, 2725 flat ORP) |
| Ph Range | 0 to 14 pH |
| Orp Range | ±2000 mV |
| Connector | Patented DryLoc gold-plated connector; mates to 2751 Smart Sensor Electronics |
| Body | PPS threaded sensor body; UHMW PE reference junction; FKM seals |
| Temperature | Bulb 0…85 °C; flat −10…85 °C |
| Pressure | Up to 6.8 bar @ 0–65 °C (100 psi @ 32–150 °F) typical; derate at higher T |
| Options | HF-resistant glass (trace HF ≤2%); low-conductivity LC 20–100 µS/cm |
| Temp Sensor | Pt1000 or 3K Balco versions for SmartPro / 9900 / 9950 |
| Application | Industrial/municipal water treatment, aquaculture, agriculture, water parks |
| Document | Datasheet Type 2724-2726 Rev O + DryLoc series manual |
