Rosemount

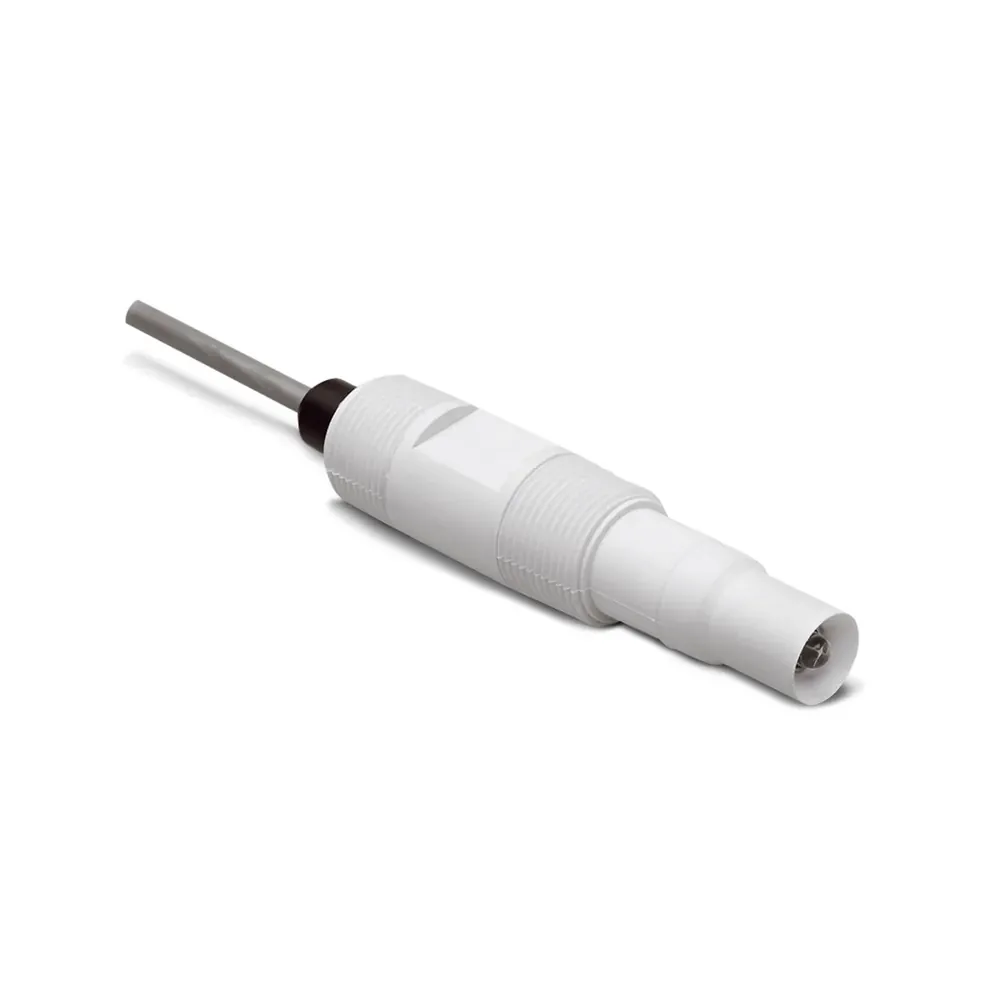

Rosemount Model 396P / 396PVP TUpH pH/ORP Sensors
Cotización a solicitud
Sin pago en línea · líneas en BOM RFQ
Descargar datasheet PDF
RFQ solo líneas BOM. Envíe para cotización de ingeniería.
Parámetros clave
Measuring range
pH 0–14; ORP −1500 to +1500 mV (electrode options)
Process connection
1 in (25 mm) MNPT front and rear facing threads (insertion/submersion/flow-through)
Type
TUpH pH/ORP sensor for dirty/abrasive/coating/high-solids service (Rosemount 396P / 396PVP)
Process Temperature
Max 212 °F (100 °C)
Process Pressure
Max 150 psig (10.34 barg)
Body Material
Reinforced polypropylene
| Parámetro | Valor |
|---|---|
| Measuring range | pH 0–14; ORP −1500 to +1500 mV (electrode options) |
| Process connection | 1 in (25 mm) MNPT front and rear facing threads (insertion/submersion/flow-through) |
| Type | TUpH pH/ORP sensor for dirty/abrasive/coating/high-solids service (Rosemount 396P / 396PVP) |
| Process Temperature | Max 212 °F (100 °C) |
| Process Pressure | Max 150 psig (10.34 barg) |
| Body Material | Reinforced polypropylene |
| Reference | TUpH large-area junction; poisoning-resistant helical reference pathway |
| Electrodes | GPLR hemi glass; optional flat pH glass; platinum ORP |
| Cable | 396P integral cable (preamp options); 396PVP Variopol VP8 (cable sold separately) |
| Temperature Compensation | Pt-100 / options for Rosemount 1056/1066/56/5081 family (code 55) or legacy transmitters (code 54) |
| Smart | SMART enabled preamplifier options for pH |
| Document | PDS 00813-0100-3396 Rev AD + QSG |
