Image may differ from actual product
Pressure Transmitters

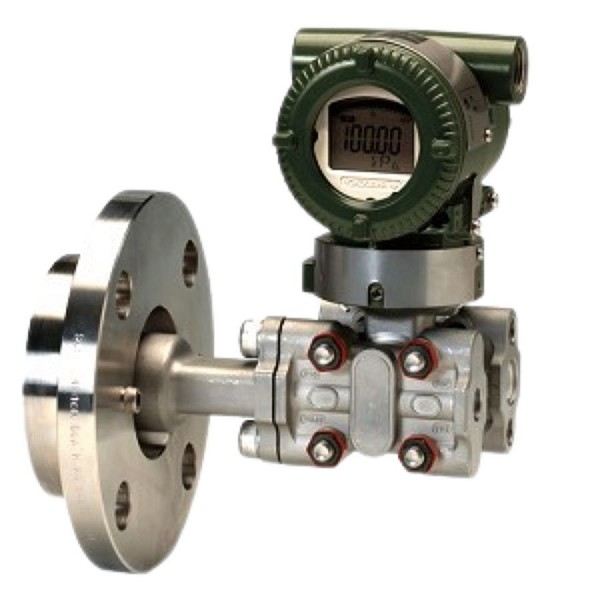

EJA210A-DHSA1F4B-92DN/FS1/D4/M13/T36
Yokogawa
Flange Mounted Differential Pressure Transmitter(Stop Production. New Replacement : EJA210E-JHS4G-912DN-WA13C1SW00-B/NS21/M1W/T52/D4 Flange Mounted Differential Pressure Transmitter )
Our Price
USD1,690.00
Best price guaranteed - We can beat any competitor's price
Product Details
Part NumberEJA210A-DHSA1F4B-92DN/FS1/D4/M13/T36
ManufacturerYokogawa
ConditionBrand New
Warranty12 months
Lead Time1 - 10 Working Days
CategoryPressure Transmitters
Specifications
- Manufacturer : Yokogawa
- Product No. : EJA210A-DHSA1F4B-92DN/FS1/D4/M13/T36
- Product type : Flange Mounted Differential Pressure Transmitter
- Output : Two wire 4 to 20 mA DC output with digital communications, linear or square root programmable
- Failure Alarm: Output status at CPU failure and hardware error
- Damping Time Constant (1st order) : The sum of the amplifier and capsule damping time constant must be used for the overall time constant
- Zero Adjustment Limits : Zero can be fully elevated or suppressed, within the Lower and Upper Range Limits of the capsule
- Model : EJA210E = Flange mounted differential pressure transmitter
- Output Signal : -D = 4 to 20 mA DC with digital communication (BRAIN protocol)
- Measurement span (capsule) : H = 5 to 500 kPa {0.05 to 5 kgf/cm2}
- High pressure side (Process flange side) wetted parts material : S = SUS316L
- Process flange rating : A1 = ANSI Class 150
- Process flange size/material : F = 3-inch (80 mm) /SUS316
- Low pressure side process connection : 4 = with 1/2NPT female process connector
- Bolts and nuts material : B = SUS630
