AEMC

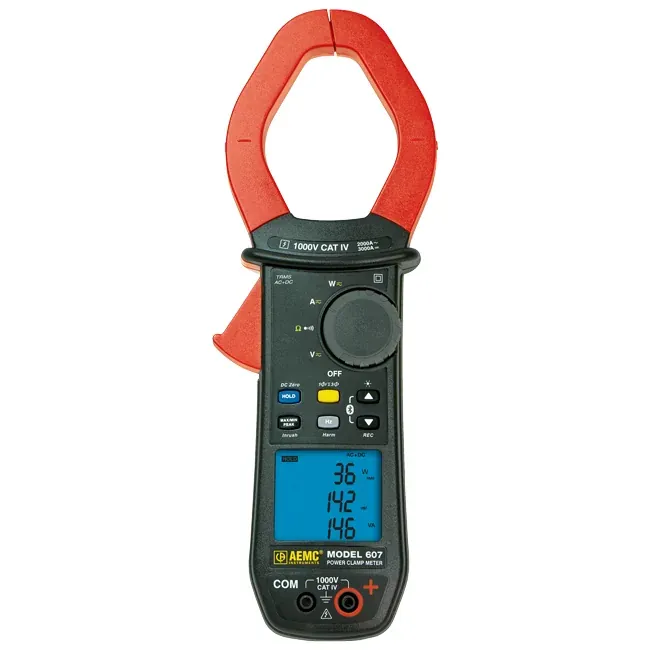

AEMC Model 607 TRMS Power Clamp-On Meter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
Current 2000 A AC / 3000 A DC; Voltage 1000 V AC/DC / AC+DC; Resistance to 100 kΩ; Frequency to 20 kHz (V) / 1 kHz (A); Power to 2 MW AC / 3 MW DC
Accuracy
Typical V 1% ± 3 cts; Typical A 1% ± 3 cts (per AEMC Model 607 datasheet)
Output
Bluetooth wireless to DataView PC software (no analog process output)
Supply
4× 1.5 V AA; battery life >350 h
Protection
IP54
Ambient temperature
Operating −4 to 131 °F (−20 to 55 °C)
| Параметр | Значение |
|---|---|
| Measuring range | Current 2000 A AC / 3000 A DC; Voltage 1000 V AC/DC / AC+DC; Resistance to 100 kΩ; Frequency to 20 kHz (V) / 1 kHz (A); Power to 2 MW AC / 3 MW DC |
| Accuracy | Typical V 1% ± 3 cts; Typical A 1% ± 3 cts (per AEMC Model 607 datasheet) |
| Output | Bluetooth wireless to DataView PC software (no analog process output) |
| Supply | 4× 1.5 V AA; battery life >350 h |
| Protection | IP54 |
| Ambient temperature | Operating −4 to 131 °F (−20 to 55 °C) |
| Display | 10,000-count blue electroluminescent backlit LCD |
| Approvals | CE; EN/IEC 61010 CAT IV 1000 V |
| Mounting | Handheld; jaw opening 2.36 in (60 mm) |
| Sensor type | TRMS clamp-on power meter with Hall/current transformer jaws |
| Notes | Cat. #2139.61 Power Clamp-On Meter Model 607. Specs from aemc.com Model 607 datasheet 2139-61.pdf. |
| Jaw Opening | 2.36 in (60 mm) |
| Harmonics | Individual harmonics to 25th; THD-r / THD-f |
