MadgeTech

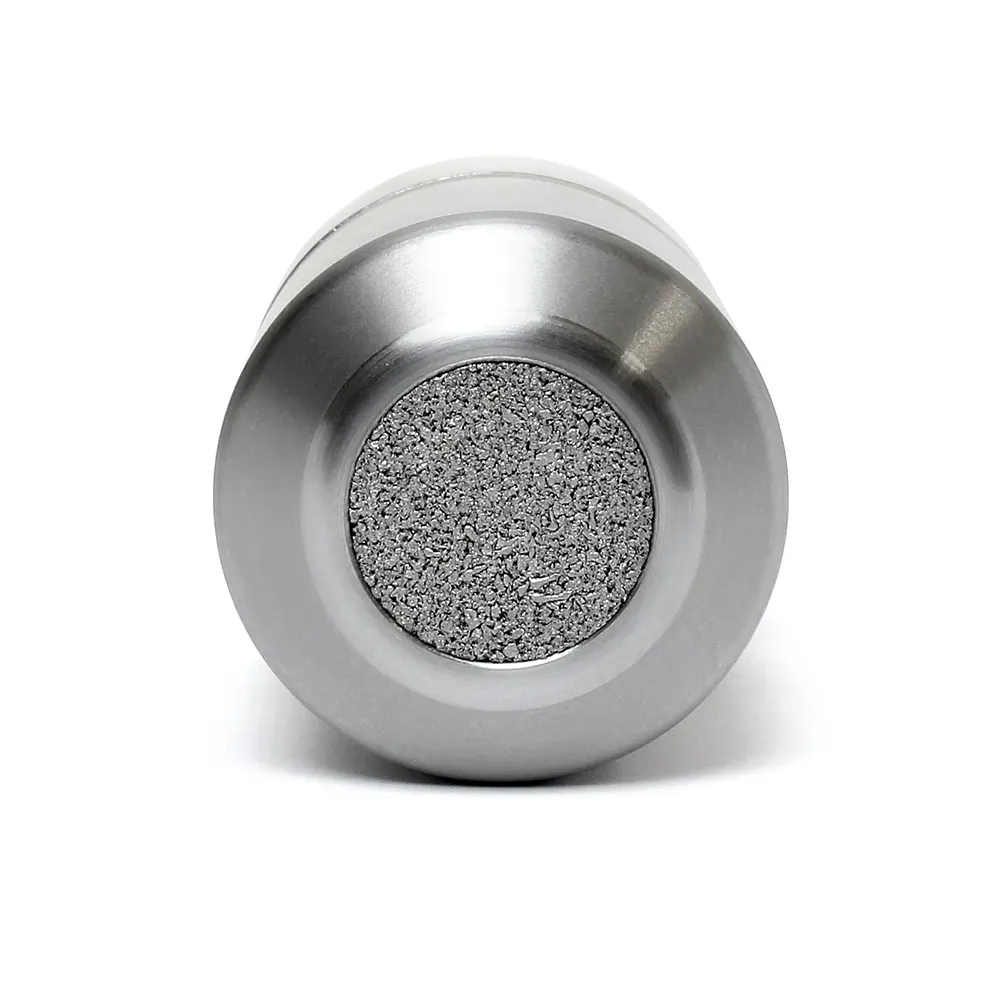

MadgeTech RHTemp1000IS Intrinsically Safe Humidity and Temperature Data Logger
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Approvals
SGS IS Class I/II/III Div 1 Groups A–G; Div 2 Groups A–D,F,G; T4A
Temperature Range
-40 °C to +80 °C (-40 °F to +176 °F)
Temperature Accuracy
±0.5 °C (0 °C to 50 °C)
Humidity Range
0 %RH to 100 %RH (non-condensing)
Humidity Accuracy
±3.0 %RH maximum
Memory
32,640 readings per channel
| Параметр | Значение |
|---|---|
| Approvals | SGS IS Class I/II/III Div 1 Groups A–G; Div 2 Groups A–D,F,G; T4A |
| Temperature Range | -40 °C to +80 °C (-40 °F to +176 °F) |
| Temperature Accuracy | ±0.5 °C (0 °C to 50 °C) |
| Humidity Range | 0 %RH to 100 %RH (non-condensing) |
| Humidity Accuracy | ±3.0 %RH maximum |
| Memory | 32,640 readings per channel |
| Reading Rate | 1 s to 24 h |
| Battery Life | 2 years typical at 15 min reading rate |
| Material | 316 stainless steel / Radel |
| Dimensions | 1.67 in × 0.97 in dia. (42.3 × 24.6 mm) |
