Michell Instruments

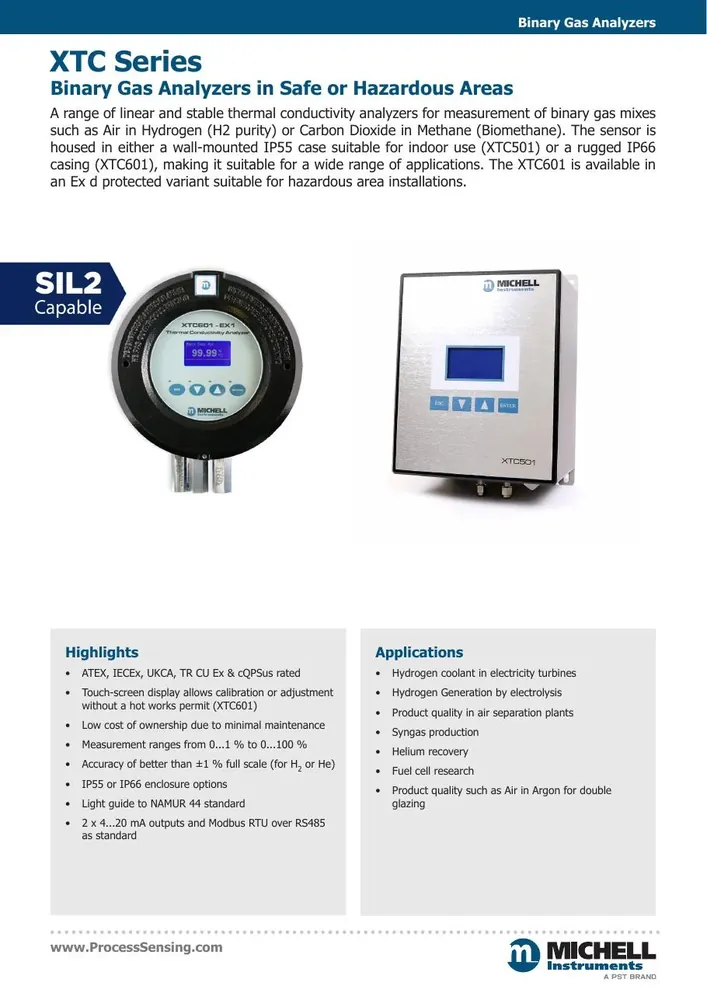

Michell Instruments XTC601 Binary Gas Analyzer
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Wetted parts
316L SS, borosilicate glass, platinum, O-rings (Viton/Silicone/Ekraz)
Hazardous area
Ex d / ATEX/IECEx/cQPSus variants; SIL2 capable option
Technology
Thermal conductivity (matched thermistors / Wheatstone bridge)
Measurement Range
Selectable 0…1 % up to 0…100 %; suppressed-zero bands e.g. 50…100 % to 98…100 %
Accuracy H2 He
< ±1 % of range or ±0.05 % H₂/He (whichever greater)
Accuracy Other
< ±2 % of range (other gas mixtures/ranges)
| Параметр | Значение |
|---|---|
| Wetted parts | 316L SS, borosilicate glass, platinum, O-rings (Viton/Silicone/Ekraz) |
| Hazardous area | Ex d / ATEX/IECEx/cQPSus variants; SIL2 capable option |
| Technology | Thermal conductivity (matched thermistors / Wheatstone bridge) |
| Measurement Range | Selectable 0…1 % up to 0…100 %; suppressed-zero bands e.g. 50…100 % to 98…100 % |
| Accuracy H2 He | < ±1 % of range or ±0.05 % H₂/He (whichever greater) |
| Accuracy Other | < ±2 % of range (other gas mixtures/ranges) |
| Repeatability | ±0.2 % of range |
| Sample Flow Gp | 100…500 ml/min (0.25…1.0 scfh) |
| Sample Flow Ex | 270…330 ml/min Ex version |
| Sample Pressure | Fixed 0.75…1.5 barA (calibrate at operating pressure); max safe 1 barg |
| Sample Gas | Non-condensing; particles <3 μm |
| Outputs | 2× 4–20 mA; Modbus RTU RS485; 2 concentration alarm relays |
| Ingress Protection | IP66 / NEMA 4 (XTC601); IP55 (XTC501) |
| Dimensions Xtc601 | 234 × 234 × 172 mm; weight 9.7 kg |
| Power | 24 V DC, 1.0 A max |
