AOI

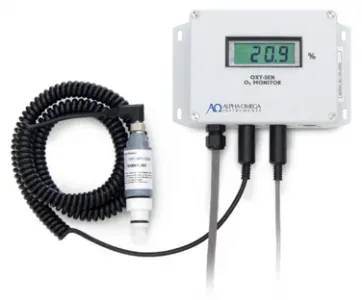

Alpha Omega Instruments OXY-SEN Percent Oxygen Monitor
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
0–100% oxygen (gas phase)
Accuracy
±1% of full scale (at 77°F and 29.92 inHg)
Output
Dual 4–20 mA scaled over 0–100% and 0–25% O₂
Supply
115/230 VAC 50–60 Hz or 24 VDC
Display
3½-digit LCD
Sensor type
Long-life ambient-temperature electrochemical; acid-gas / CO₂ resistant; M16×1 threaded diffusion sensor with O-ring
| Параметр | Значение |
|---|---|
| Measuring range | 0–100% oxygen (gas phase) |
| Accuracy | ±1% of full scale (at 77°F and 29.92 inHg) |
| Output | Dual 4–20 mA scaled over 0–100% and 0–25% O₂ |
| Supply | 115/230 VAC 50–60 Hz or 24 VDC |
| Display | 3½-digit LCD |
| Sensor type | Long-life ambient-temperature electrochemical; acid-gas / CO₂ resistant; M16×1 threaded diffusion sensor with O-ring |
| Linearity | ±1% of full scale |
| Response Time | 90% of full scale in under 30 seconds |
| Operating Temperature | 40° to 104°F (5° to 40°C) |
| Sample Pressure | <2 psig (0.14 kg/cm²) |
