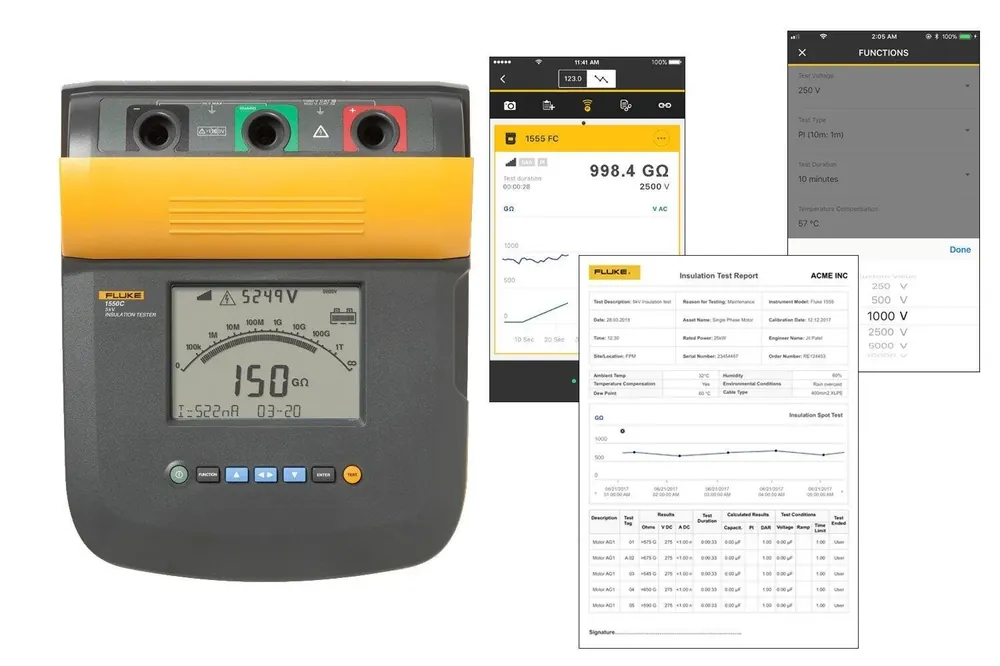

Fluke 1555 Insulation Resistance Tester

SKU · 35003 · 1555 · Бренд: Fluke

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

Insulation resistance up to 2 TΩ (1555); test voltages to 10 kV; selectable 250 V–1000 V in 50 V steps plus higher HV steps per TD

Accuracy

Per Fluke 1555/1550C Technical Data resistance accuracy bands (typically ±5% / ±20% by range/voltage)

Output

Digital display + bar graph to 2 TΩ; PI/DAR; Fluke Connect with ir3000 FC

Supply

12 V lead-acid rechargeable (Yuasa NP2.8-12); >750 tests between charges

Protection

IP40 (enclosure per OEM literature)

Approvals

CAT III 1000 V; CAT IV 600 V; IEC 61010

Параметр	Значение
Measuring range	Insulation resistance up to 2 TΩ (1555); test voltages to 10 kV; selectable 250 V–1000 V in 50 V steps plus higher HV steps per TD
Accuracy	Per Fluke 1555/1550C Technical Data resistance accuracy bands (typically ±5% / ±20% by range/voltage)
Output	Digital display + bar graph to 2 TΩ; PI/DAR; Fluke Connect with ir3000 FC
Supply	12 V lead-acid rechargeable (Yuasa NP2.8-12); >750 tests between charges
Protection	IP40 (enclosure per OEM literature)
Approvals	CAT III 1000 V; CAT IV 600 V; IEC 61010
Mounting	Portable benchtop/field case
Sensor type	High-voltage insulation resistance tester (megohmmeter)
Notes	Identity corrected from mis-seeded Yokogawa EY200 to Fluke 1555 per OEM product page + user SKU list. Specs from Fluke 1555/1550C Technical Data.
