Fluke

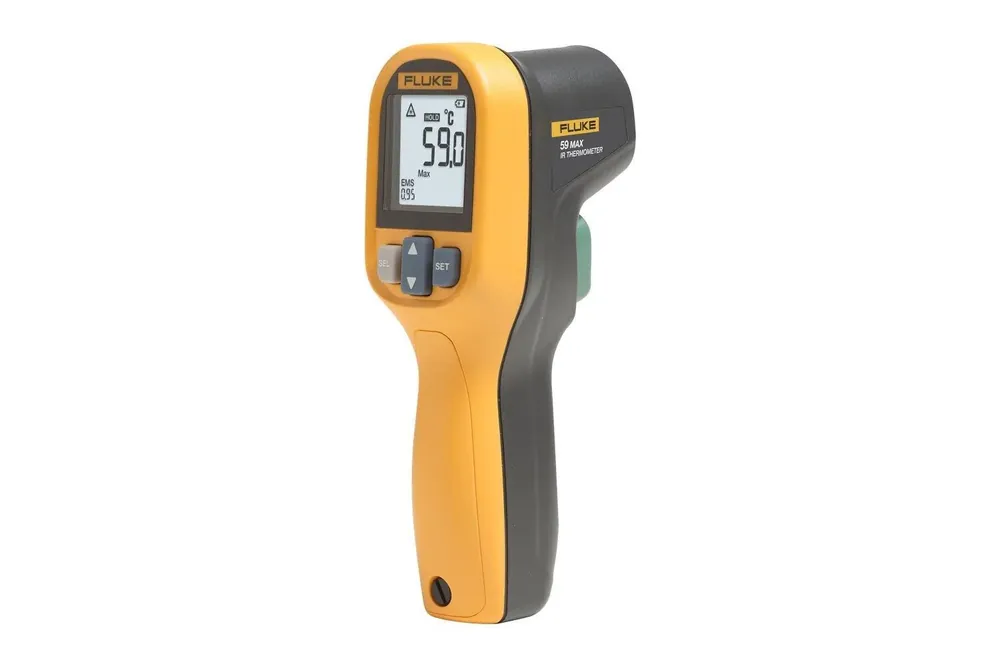

Fluke 59 MAX Infrared Thermometer
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
≥0 °C: ±2.0 °C or ±2.0 % of reading, whichever greater
Protection
IP40 per IEC 60529
Temperature Range
–30 °C to 350 °C (–22 °F to 662 °F)
Distance To Spot
8:1 (90 % energy)
Response Time
< 500 ms (95 % of reading)
Spectral Response
8 µm to 14 µm
| Параметр | Значение |
|---|---|
| Accuracy | ≥0 °C: ±2.0 °C or ±2.0 % of reading, whichever greater |
| Protection | IP40 per IEC 60529 |
| Temperature Range | –30 °C to 350 °C (–22 °F to 662 °F) |
| Distance To Spot | 8:1 (90 % energy) |
| Response Time | < 500 ms (95 % of reading) |
| Spectral Response | 8 µm to 14 µm |
| Emissivity | 0.10 to 1.00 |
| Display Resolution | 0.1 °C (0.2 °F) |
| Repeatability | ±1.0 % of reading or ±1.0 °C, whichever greater |
| Power | 1× AA IEC LR06 |
| Battery Life | 12 hours with laser and backlight on |
| Size | 156 × 80 × 50 mm |
| Weight | 220 g (7.76 oz) |
| Drop Test | 1 m |
| Operating Temperature | 0 °C to 50 °C |
