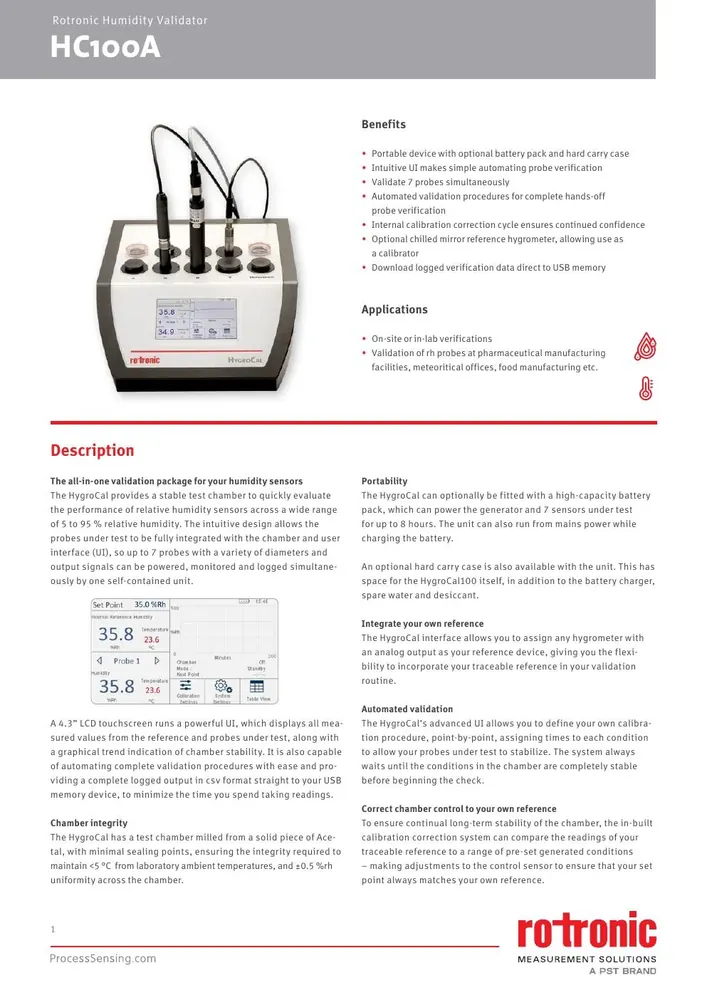

Rotronic HygroCal100 Advanced (HC100A) Humidity Validator

SKU · 140876 · HygroCal100A Humidity Calibrator · Бренд: Rotronic

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Rh Generation Range

5 to 95% RH

Rh Stability Uniformity

±0.5% RH stability; ±0.5% RH uniformity across chamber

Stabilization Time

Typically <5 min for full stability from 10% RH step changes

Control Probe

HC2A-S: ±0.8% RH accuracy; ±0.1°C temperature; ±1% RH/year long-term stability

Probe Capacity

Validate up to 7 probes simultaneously (8-port adaptors for 12–25 mm diameters)

Probe Signal Interface

7× 24 V excitation (incl. 1× 3.3 V); accepts 0–20/4–20 mA, 0–1/0–5/0–10 V

Параметр	Значение
Rh Generation Range	5 to 95% RH
Rh Stability Uniformity	±0.5% RH stability; ±0.5% RH uniformity across chamber
Stabilization Time	Typically <5 min for full stability from 10% RH step changes
Control Probe	HC2A-S: ±0.8% RH accuracy; ±0.1°C temperature; ±1% RH/year long-term stability
Probe Capacity	Validate up to 7 probes simultaneously (8-port adaptors for 12–25 mm diameters)
Probe Signal Interface	7× 24 V excitation (incl. 1× 3.3 V); accepts 0–20/4–20 mA, 0–1/0–5/0–10 V
User Interface	4.3 in color LCD touchscreen; automated validation procedures
Data Logging	2 GB internal memory (~10.6 years at 5 s intervals); CSV download to USB
Chamber Volume	Approx. 1050 cm³; max probe insertion depth 60 mm
Reservoirs	Desiccant 25 cm³; saturator 25 ml
Power	24 V DC (100–240 V AC 50/60 Hz adaptor included); optional 1500 mAh battery
Environmental Range	+5 to +40°C ambient
Dimensions Weight	100 × 250 × 300 mm (H×W×D); 3.2 kg (7 lb)
Technology	Divided-flow mixing with saturator and desiccant reservoirs; HC2A control
