Jewell Instruments

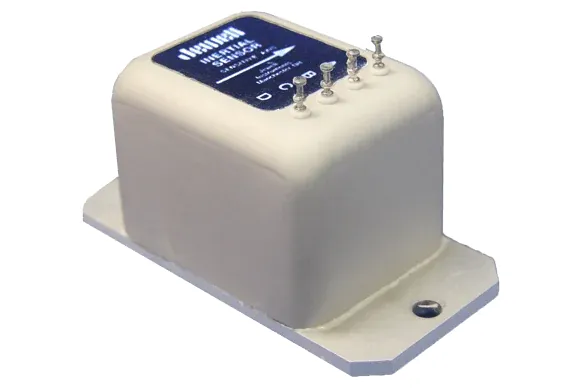

Jewell Instruments LCI Single-Axis Analog Inclinometer
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Type
Single-axis flexure suspension servo inclinometer (LCI)
Input Ranges
±3° to ±90° models
Bandwidth
Standard 5 Hz bandwidth cutoff
Resolution
Resolves angles > 1 μrad
Scale Factor Temp
100 ppm/°C scale factor temperature sensitivity class
Operating Temp
−55 °C to +85 °C
| Параметр | Значение |
|---|---|
| Type | Single-axis flexure suspension servo inclinometer (LCI) |
| Input Ranges | ±3° to ±90° models |
| Bandwidth | Standard 5 Hz bandwidth cutoff |
| Resolution | Resolves angles > 1 μrad |
| Scale Factor Temp | 100 ppm/°C scale factor temperature sensitivity class |
| Operating Temp | −55 °C to +85 °C |
| Power | ±15 VDC supply (typical pinout) |
| Applications | Antenna leveling, robotics, track/tunnel tilt, vehicle alignment |
| Form | Forced-balance / flexure suspension servo |
