Jewell Instruments

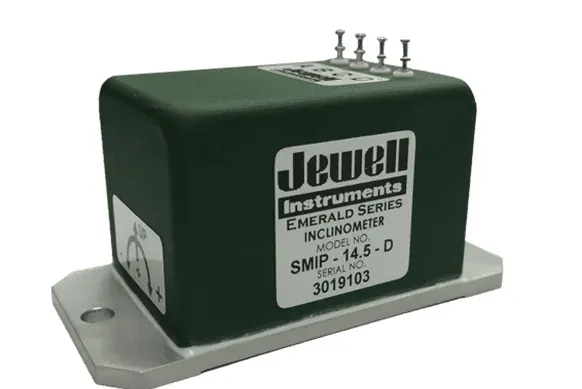

Jewell Instruments SMI Series Inclinometer
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
±3° / ±14.5° / ±30° / ±45° / ±60° / ±90° (SMI-D/L/S family)
Accuracy
Nonlinearity 0.02–0.05% FRO (range dependent); resolution/threshold 3.5 µrad
Output
SMI-D ±5 VDC; SMI-S 0–5 VDC; SMI-L 4–20 mA; connector or pin options
Supply
Dual-ended or single-ended power per D/L/S version (see OEM datasheet)
Housing
Rugged Emerald Series metal housing; RoHS compliant
Protection
Rugged sealed Emerald Series housing (see outline drawings)
| Параметр | Значение |
|---|---|
| Measuring range | ±3° / ±14.5° / ±30° / ±45° / ±60° / ±90° (SMI-D/L/S family) |
| Accuracy | Nonlinearity 0.02–0.05% FRO (range dependent); resolution/threshold 3.5 µrad |
| Output | SMI-D ±5 VDC; SMI-S 0–5 VDC; SMI-L 4–20 mA; connector or pin options |
| Supply | Dual-ended or single-ended power per D/L/S version (see OEM datasheet) |
| Housing | Rugged Emerald Series metal housing; RoHS compliant |
| Protection | Rugged sealed Emerald Series housing (see outline drawings) |
| Ambient temperature | Typical force-balance inclinometer industrial range (see SMI datasheet) |
| Approvals | RoHS compliant |
| Mounting | Horizontal or vertical mount per outline (pin or circular connector) |
| Sensor type | Single-axis force-balanced analog inclinometer (Jewell Emerald / SMI Series) |
| Resolution | 3.5 µrad (with noise reduction) |
| Bandwidth | 5 Hz (−3 dB) nominal |
| Weight | Per SMI outline drawing (compact single-axis package) |
