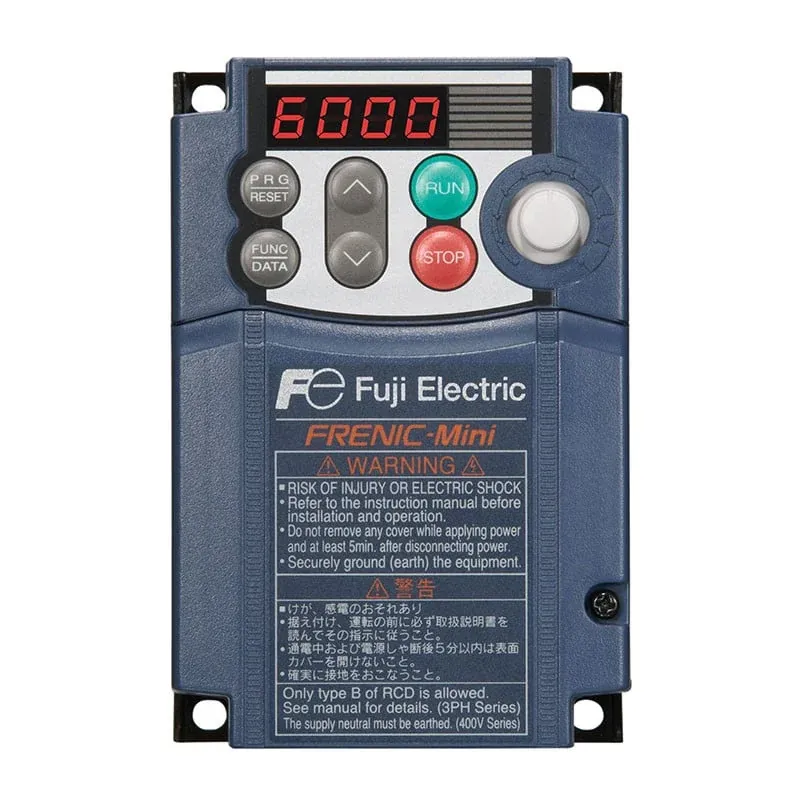

Fuji Electric FRENIC-Mini (C2) Compact AC Drive

SKU · 42897 · FRENIC-Mini (C2) · Бренд: Fuji Electric

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Power Range

0.1 to 15 kW / 1/8 to 20 HP (3-ph 200 V series example)

Input

Single-phase 115/230 V and three-phase 200–240 / 380–480 V models (region codes)

Overload

150% rated current 1 min; 200% for 0.5 s (model-dependent)

Control

V/F, slip compensation, dynamic torque vector; PM motor control

5 digital inputs; 2 analog inputs (0–10 V, 4–20 mA); relay + transistor outs; 2 analog outs

Comms

Built-in RS-485 (RJ45); PC loader; optional USB keypad

Параметр	Значение
Power Range	0.1 to 15 kW / 1/8 to 20 HP (3-ph 200 V series example)
Input	Single-phase 115/230 V and three-phase 200–240 / 380–480 V models (region codes)
Overload	150% rated current 1 min; 200% for 0.5 s (model-dependent)
Control	V/F, slip compensation, dynamic torque vector; PM motor control
Io	5 digital inputs; 2 analog inputs (0–10 V, 4–20 mA); relay + transistor outs; 2 analog outs
Comms	Built-in RS-485 (RJ45); PC loader; optional USB keypad
Pid	PID with sleep mode; automatic energy savings
Standards	EN61800-5-1, UL 508C, CE, RoHS; optional NEMA/UL Type 1 kit
Warranty	3 years from shipment (OEM brochure)
Compatibility	Fully compatible with prior FRENIC-Mini C1 dims/terminals/function codes
Rated Frequency	50/60 Hz
Form Factor	Compact chassis; example FRN0001C2S-6U ~4.72×3.15×3.94 in
