Fluke

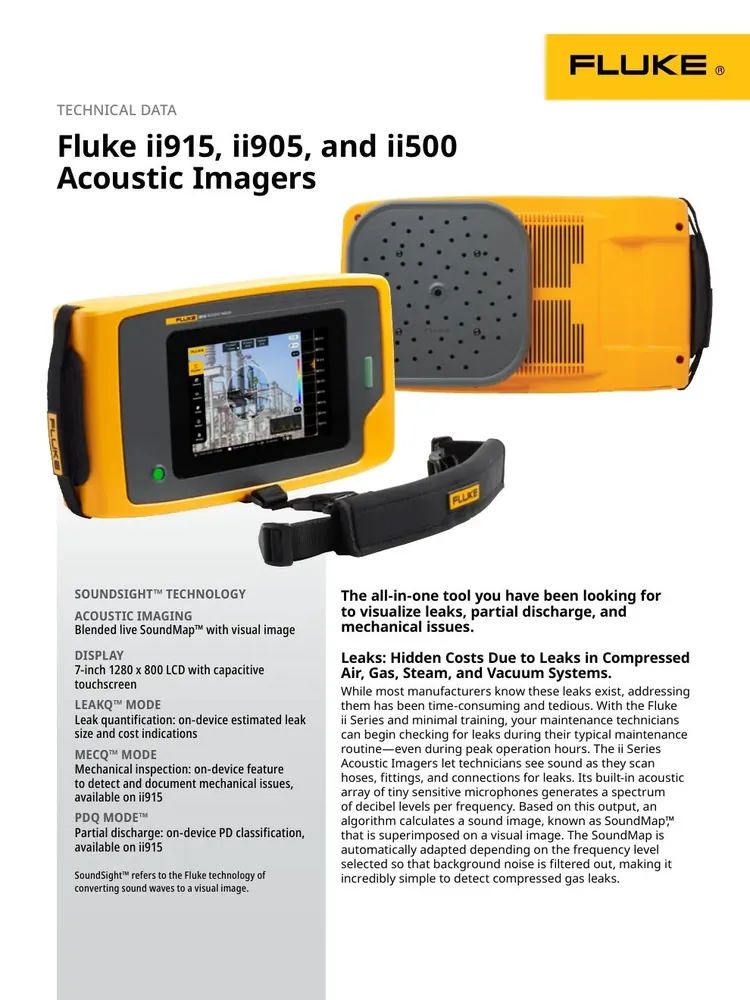

Fluke ii500, ii905 and ii915 Sonic Acoustic Imager
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Frequency Band
ii500: 2–52 kHz; ii905: 2–65 kHz; ii915: 2–100 kHz
Detection Range
ii500 up to 50 m; ii905 up to 70 m; ii915 up to 120 m (conditions apply)
Sensor Array
Array of MEMS microphones generating dB-per-frequency SoundMap overlay
Display Functions
Leak size/cost estimate (ii915); PD classification (ii915); MecQ mechanical anomaly (ii915)
Frequency Selection
User presets or manual frequency band entry
Battery Life
6 hours typical; field-replaceable Li-ion
| Параметр | Значение |
|---|---|
| Frequency Band | ii500: 2–52 kHz; ii905: 2–65 kHz; ii915: 2–100 kHz |
| Detection Range | ii500 up to 50 m; ii905 up to 70 m; ii915 up to 120 m (conditions apply) |
| Sensor Array | Array of MEMS microphones generating dB-per-frequency SoundMap overlay |
| Display Functions | Leak size/cost estimate (ii915); PD classification (ii915); MecQ mechanical anomaly (ii915) |
| Frequency Selection | User presets or manual frequency band entry |
| Battery Life | 6 hours typical; field-replaceable Li-ion |
| Battery Charge Time | Approx. 3 h (external bay) / 4 h (USB-C internal on some models) |
| Weight | Approx. 2.0–2.1 kg including battery |
| Asset Id | Text input and automatic QR-code asset identification |
| Applications | Compressed-air leak surveys; partial discharge on HV gear (ii915); mechanical first-line inspection (ii915) |
