Rosemount

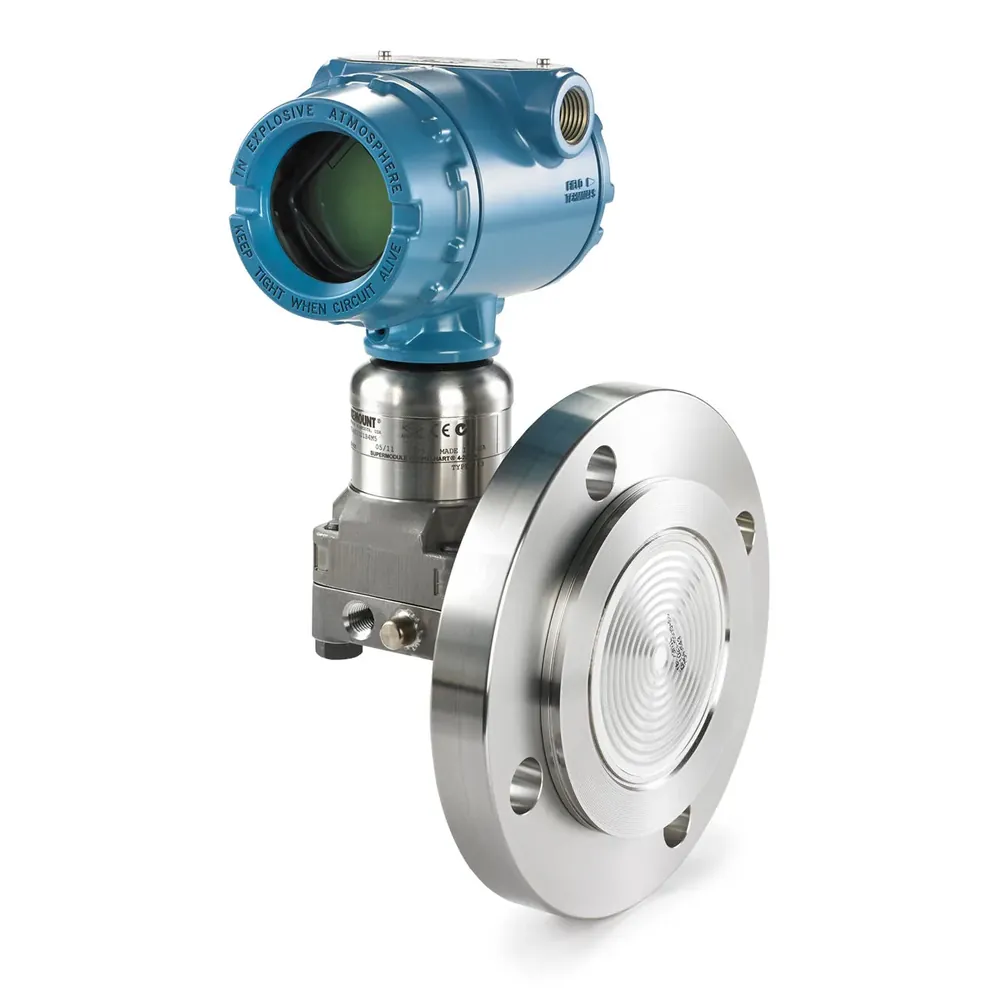

Rosemount 3051S L Level Transmitter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
Ultra performance up to ±0.025% of span; 200:1 rangedown; 15-year stability/warranty class
Process connection
Flanged ANSI/ASME, EN/DIN, GOST, JIS; threaded NPT/DIN/ISO; hygienic
Wetted parts
316L SST, Alloy C-276, Alloy 400, Tantalum, gold-plated options
Type
Scalable DP level transmitter with integrated seals (Rosemount 3051SAL / 3051S L)
Max Operating Pressure
Up to 10,000 psi (689.48 bar) typical (model/connection dependent)
Process Temperature
Fill-fluid limited: max ~770 °F (410 °C); min ~−157 °F (−105 °C)
| Параметр | Значение |
|---|---|
| Accuracy | Ultra performance up to ±0.025% of span; 200:1 rangedown; 15-year stability/warranty class |
| Process connection | Flanged ANSI/ASME, EN/DIN, GOST, JIS; threaded NPT/DIN/ISO; hygienic |
| Wetted parts | 316L SST, Alloy C-276, Alloy 400, Tantalum, gold-plated options |
| Type | Scalable DP level transmitter with integrated seals (Rosemount 3051SAL / 3051S L) |
| Max Operating Pressure | Up to 10,000 psi (689.48 bar) typical (model/connection dependent) |
| Process Temperature | Fill-fluid limited: max ~770 °F (410 °C); min ~−157 °F (−105 °C) |
| Seal System | Direct Mount, Remote Mount, Tuned-System, Balanced System |
| Diagnostics | Basic diagnostics; Loop Integrity; Process Intelligence; Plugged Impulse Line |
| Safety | SIL / NACE / hazardous-location approvals (see PDS) |
| Document | PDS 00813-0100-4801 (3051S Series incl. Scalable Level) + RM 00809-0100-4801 |
| Application | Vessel/tank level, interface, density; extreme T; clogging/viscous/hygienic |
