Endress+Hauser

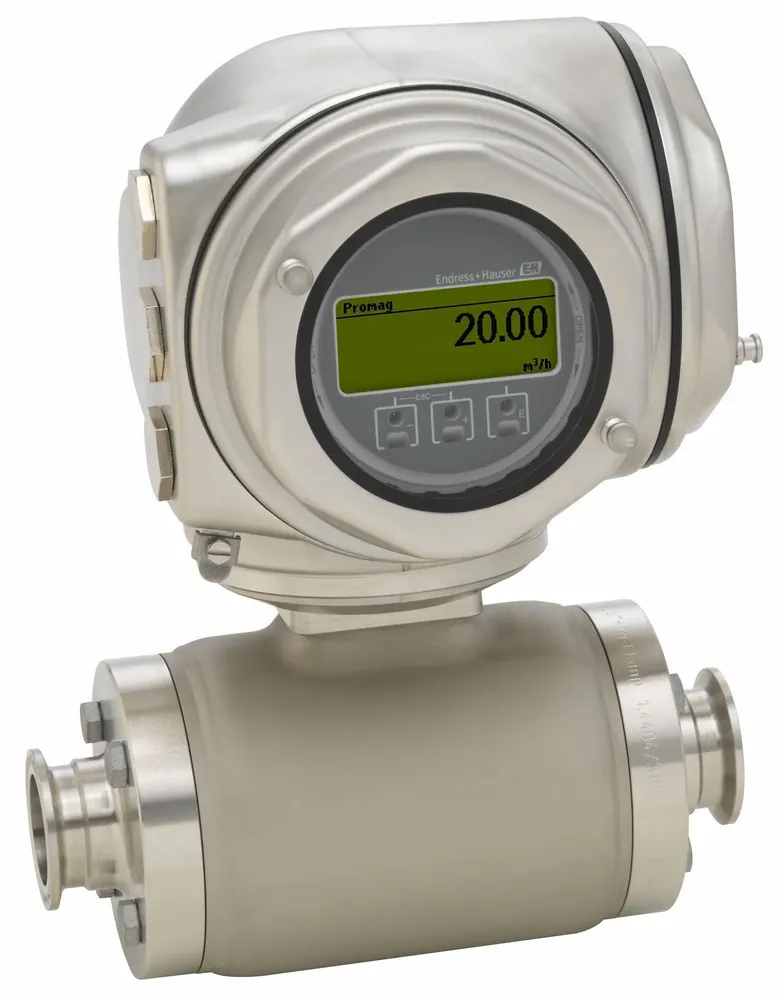

Endress+Hauser Proline Promag H 300 Electromagnetic Flow Meter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with specified accuracy; DN sizes per TI tables
Accuracy
Volume flow accuracy classes per TI01223D (standard and high-accuracy options)
Output
4–20 mA HART; pulse/frequency/switch; optional industrial Ethernet/fieldbuses on Promag 300 transmitter
Supply
DC or AC transmitter supply options per TI
Process connection
Hygienic connections (Tri-Clamp, DIN 11851, SMS, etc.) per TI
Electrical connection
Cable entries on compact transmitter
| Параметр | Значение |
|---|---|
| Measuring range | Typically v = 0.01 to 10 m/s (0.03 to 33 ft/s) with specified accuracy; DN sizes per TI tables |
| Accuracy | Volume flow accuracy classes per TI01223D (standard and high-accuracy options) |
| Output | 4–20 mA HART; pulse/frequency/switch; optional industrial Ethernet/fieldbuses on Promag 300 transmitter |
| Supply | DC or AC transmitter supply options per TI |
| Process connection | Hygienic connections (Tri-Clamp, DIN 11851, SMS, etc.) per TI |
| Electrical connection | Cable entries on compact transmitter |
| Wetted parts | PFA/PTFE liner options; stainless hygienic electrodes/wetted parts per order |
| Housing | Compact transmitter housing; hygienic sensor design |
| Protection | IP66/67 transmitter; sensor IP67/IP69 options typical for hygienic |
| Media temperature | Per liner/hygienic process temperature tables in TI |
| Ambient temperature | Transmitter ambient limits per TI |
| Pressure type | other |
| Display | Local display on Promag 300 transmitter |
| Communication | HART; optional fieldbuses/Ethernet as ordered |
| Approvals | 3-A / EHEDG options; ATEX/IECEx options; FDA-compliant materials options |
| Hazardous area | Ex approvals by order code |
| Mounting | Inline hygienic electromagnetic sensor with compact Promag 300 transmitter |
| Notes | Specs from Endress+Hauser TI01223D (Promag H 300). Hygienic magmeter family; Heartbeat Technology. |
| Overpressure Limit | Pressure ratings by hygienic connection / size in TI |
