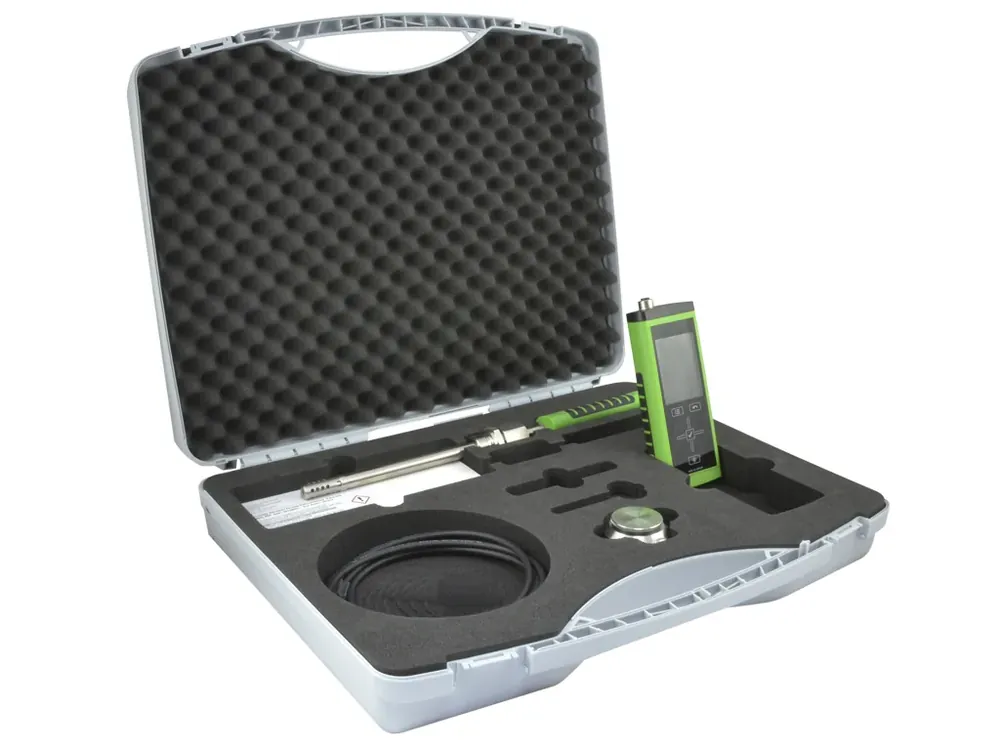

E+E Elektronik Oilport 30 Moisture Content Meter

SKU · 43277 · Oilport 30 · Бренд: E+E Elektronik

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Protection

IP40 (handset and probe handle)

Display

TFT 54 × 41 mm with backlight

Measured Values

Water activity (aw), temperature (T), calculated water content x (ppm)

Probe Measuring Range

0…1 aw; 0…20,000 ppm; −40…+120 °C

Accuracy Aw

±0.02 aw (0…0.9); ±0.03 aw (0.9…1)

Accuracy Temperature

±0.2 °C at 20 °C; ±0.5 °C at −40/+120 °C

Параметр	Значение
Protection	IP40 (handset and probe handle)
Display	TFT 54 × 41 mm with backlight
Measured Values	Water activity (aw), temperature (T), calculated water content x (ppm)
Probe Measuring Range	0…1 aw; 0…20,000 ppm; −40…+120 °C
Accuracy Aw	±0.02 aw (0…0.9); ±0.03 aw (0.9…1)
Accuracy Temperature	±0.2 °C at 20 °C; ±0.5 °C at −40/+120 °C
Response T90 Still Oil	≤10 min
Pressure Rating Probe	0.01…20 bar (pressure-tight probe)
Power	4× AA LR6 1.5 V; optional 5 V DC USB
Memory	Approx. 2 million measured values
Dimensions Weight	170 × 62 × 34 mm; approx. 205 g
Software	SmartGraph3
