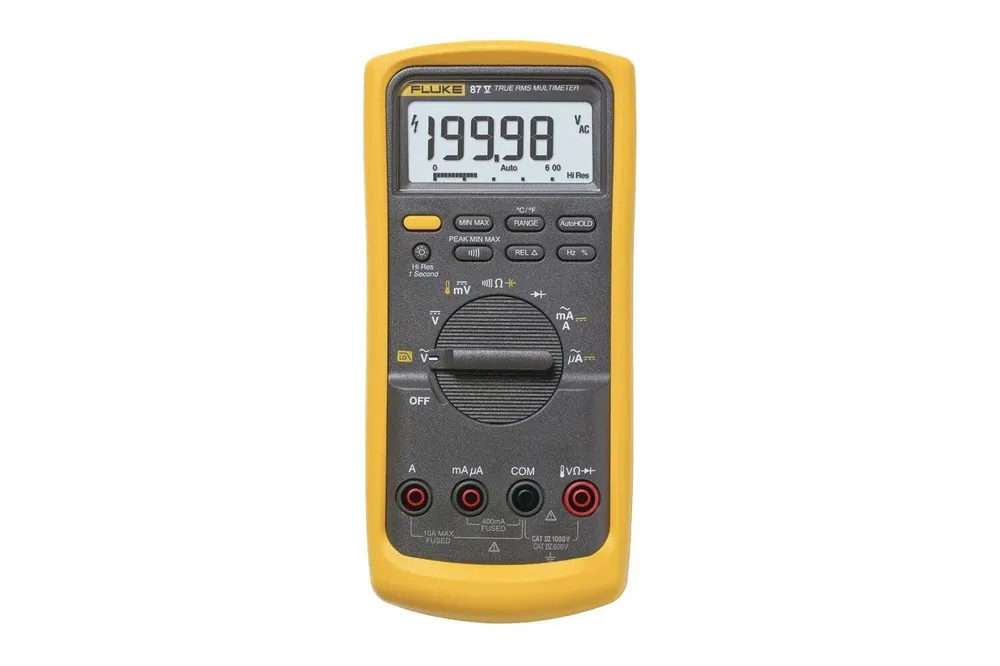

Fluke 87V Industrial True-RMS Multimeter with Temperature

SKU · 30281 · 87V · Бренд: Fluke

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

DC/AC voltage to 1000 V; DC/AC current to 10 A (20 A for 30 s); resistance to 50 MΩ; capacitance to 9999 µF; frequency to 200 kHz

Accuracy

DC volts basic accuracy 0.05%; AC volts True-RMS 0.7%; DC current 0.2%; resistance 0.2%

Output

Digital display with analog bargraph; Min/Max/Avg; Peak capture 250 µs; Relative mode

Supply

9 V battery

Protection

Industrial handheld (see OEM environmental specs)

Ambient temperature

Operating −20 °C to +55 °C; storage −40 °C to +60 °C

Параметр	Значение
Measuring range	DC/AC voltage to 1000 V; DC/AC current to 10 A (20 A for 30 s); resistance to 50 MΩ; capacitance to 9999 µF; frequency to 200 kHz
Accuracy	DC volts basic accuracy 0.05%; AC volts True-RMS 0.7%; DC current 0.2%; resistance 0.2%
Output	Digital display with analog bargraph; Min/Max/Avg; Peak capture 250 µs; Relative mode
Supply	9 V battery
Protection	Industrial handheld (see OEM environmental specs)
Ambient temperature	Operating −20 °C to +55 °C; storage −40 °C to +60 °C
Approvals	CAT III 1000 V; CAT IV 600 V
Temperature Measurement	−200 to 1090 °C (−328 to 1994 °F) excluding probe; 80BK probe −40 to 260 °C
Safety Rating	CAT III 1000 V / CAT IV 600 V
Special Features	True-RMS; selectable low-pass filter for VFD/motor-drive signals; built-in thermometer; dual-level backlight; 4½-digit mode
Enclosure Material	Rugged industrial handheld with removable holster
Included Accessories	TL75 test leads, alligator clips, holster, 9 V battery, 80BK temperature probe
Frequency	To 200 kHz, accuracy 0.005%
Duty Cycle	To 99.9%
