Panametrics

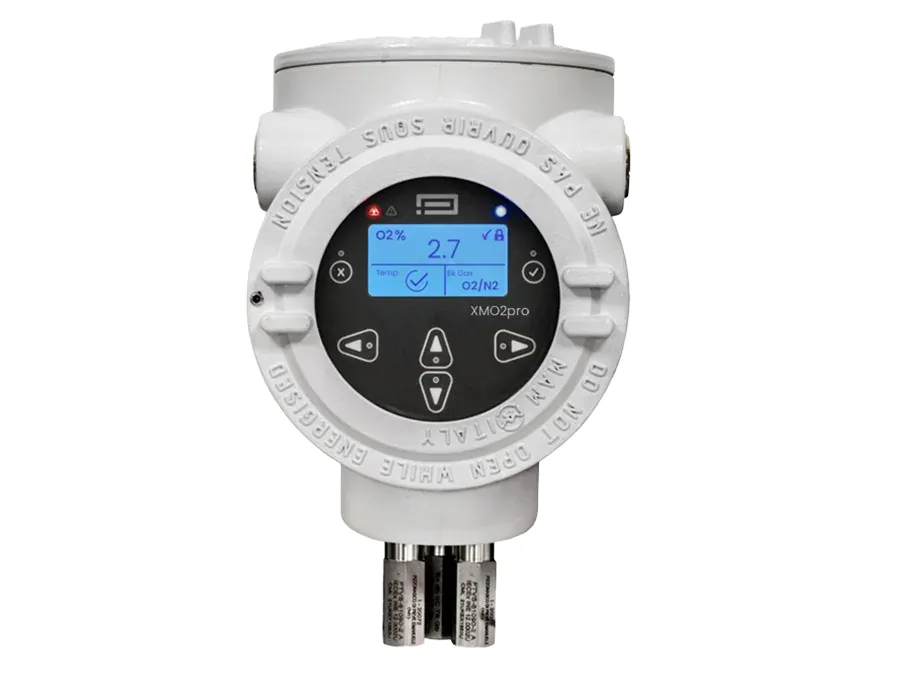

Panametrics XMO2pro Oxygen Analyzer
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
±1% of span (±2% for 0–1% range)
Analyzer Type
Paramagnetic (magnetic wind) percent oxygen analyzer
Zero Stability
±1% of span per month (±2% for 0–1% range)
Response Time
Standard ~70 s; Fast-Response option ~15 s
Measurement Ranges
0–1% to 0–100% O2 (typical spans)
Analog Output
Two isolated 4–20 mA, 550 Ω max
| Параметр | Значение |
|---|---|
| Accuracy | ±1% of span (±2% for 0–1% range) |
| Analyzer Type | Paramagnetic (magnetic wind) percent oxygen analyzer |
| Zero Stability | ±1% of span per month (±2% for 0–1% range) |
| Response Time | Standard ~70 s; Fast-Response option ~15 s |
| Measurement Ranges | 0–1% to 0–100% O2 (typical spans) |
| Analog Output | Two isolated 4–20 mA, 550 Ω max |
| Digital Output | Modbus |
| Power | 24 VDC ±4 VDC, 2 A |
| Sample Flow | 50–1000 cc/min (0.1–2.0 SCFH) |
| Sample Temperature | –5 to 55 °C typical |
| Enclosure | Weatherproof / explosion-proof / flameproof field-mount |
| Weight | Aluminum ~4.5 kg; stainless ~11 kg |
| Functional Safety | SIL 2 by design (optional) |
| Datasheet | PANA079DS Rev. 13 (06/2026) |
