Panametrics

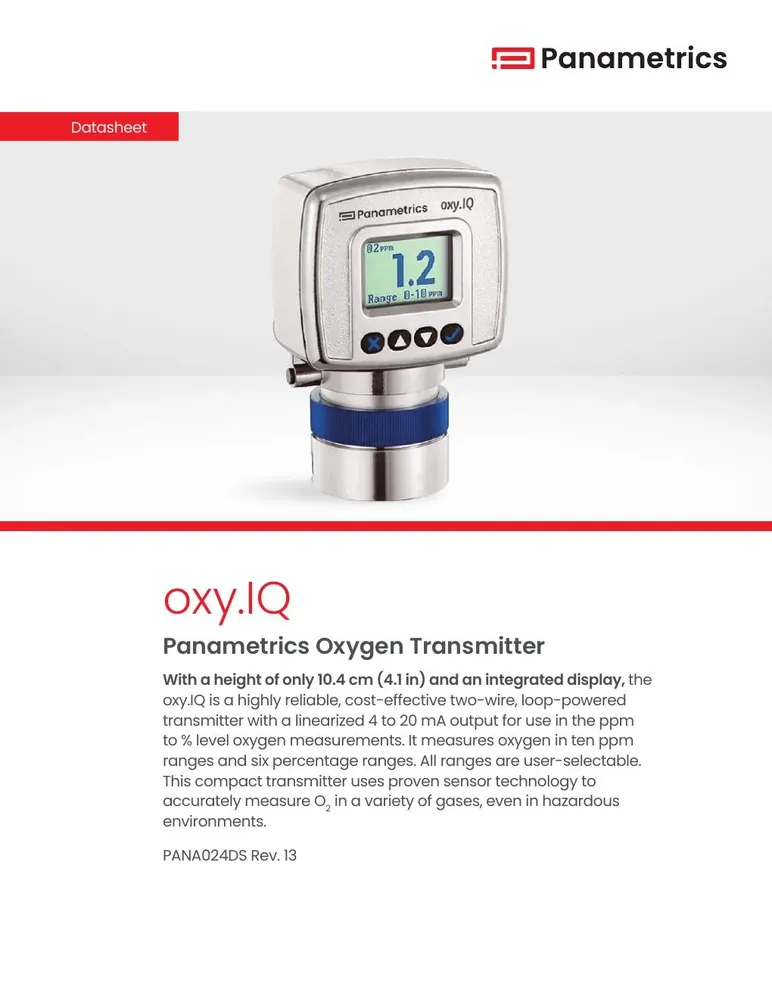

Panametrics oxy.IQ Oxygen Transmitter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
±1% of range at calibration (±2% for 0–10 ppmv OX-1/OX-2)
Hazardous area
IS Class I Div 1 / ATEX Zone 0; flameproof Ex d IP66 option
Transmitter Type
Two-wire loop-powered galvanic fuel-cell O2 transmitter
Repeatability
±1% of range (±2% for 0–10 ppmv)
Resolution
±0.1% of range
Ppm Ranges
0–10 to 0–10,000 ppmv O2 (sensor-dependent)
| Параметр | Значение |
|---|---|
| Accuracy | ±1% of range at calibration (±2% for 0–10 ppmv OX-1/OX-2) |
| Hazardous area | IS Class I Div 1 / ATEX Zone 0; flameproof Ex d IP66 option |
| Transmitter Type | Two-wire loop-powered galvanic fuel-cell O2 transmitter |
| Repeatability | ±1% of range (±2% for 0–10 ppmv) |
| Resolution | ±0.1% of range |
| Ppm Ranges | 0–10 to 0–10,000 ppmv O2 (sensor-dependent) |
| Percent Ranges | 0–1% to 0–50% O2 |
| Power | 24–28 VDC at 50 mA |
| Sample Pressure | Vented for cal/op; max ~10 psig sample |
| Sample Flow | ~500 cc/min recommended |
| Sensor Temperature | 0 to 45 °C |
| Height | 10.4 cm with integrated display/keypad |
| Datasheet | PANA024DS Rev. 13 |
