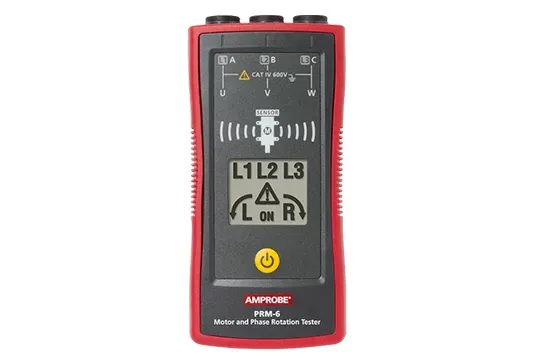

Amprobe PRM-6 Phase Sequence and Motor Rotation Tester

SKU · 41997 · PRM-6 Phase Sequence and Motor Rotation Tester · Бренд: Amprobe

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Display

Backlit LCD with phase / error symbols

Phase Voltage Range

40–700 V (16–60 Hz); 50–700 V (60–400 Hz)

Frequency Range

16 to 400 Hz

Nominal Test Current

< 3.5 mA

Deenergized Motor Test

≥ 1 V to 700 V; 2–400 Hz

Wireless Rotation

Non-contact wireless motor rotation detection on running motors

Параметр	Значение
Display	Backlit LCD with phase / error symbols
Phase Voltage Range	40–700 V (16–60 Hz); 50–700 V (60–400 Hz)
Frequency Range	16 to 400 Hz
Nominal Test Current	< 3.5 mA
Deenergized Motor Test	≥ 1 V to 700 V; 2–400 Hz
Wireless Rotation	Non-contact wireless motor rotation detection on running motors
Safety	CAT IV 600 V; EN 61010-1 / EN 61557-1/-7; EN 61326-1
Drop Protection	Rubber casing; 3 ft (1 m) drop-proof
Power	2 × AAA
Dimensions	5.43 × 2.56 × 1.3 in (13.7 × 6.5 × 3.3 cm)
Weight	0.38 lb (0.17 kg)
