Macnaught

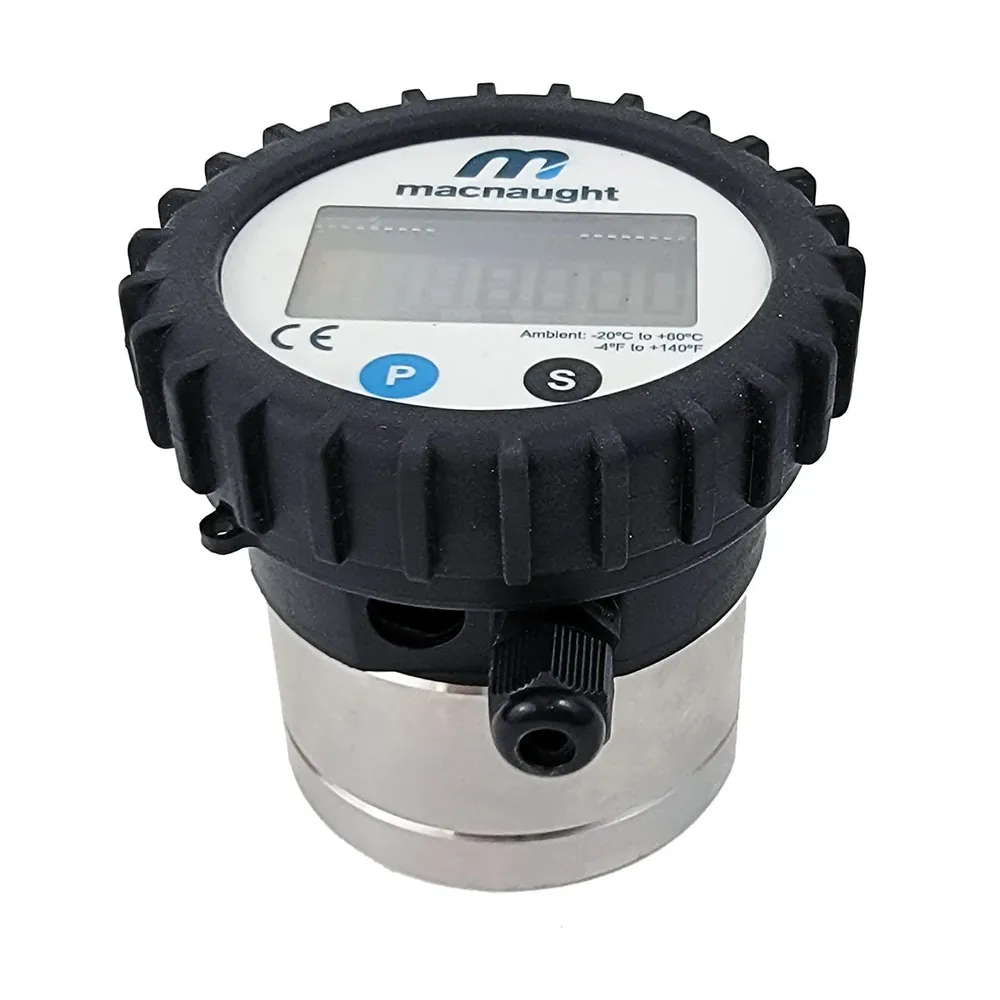

Macnaught MX Series Hazardous Area Industrial Flow Meter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
±0.5% of reading volumetric
Approvals
FM-US/FM-CA Class I Div 1 Groups ABCD; ATEX/IECEx II 2 G Ex db IIC T6…T3 Gb
Type
Hazardous-area oval-gear positive displacement flow meter (MX ExD / Simple Safe)
Repeatability
±0.03%
Sizes
¼ in to 4 in (MX06–MX100)
Flow Range
Approx. 0.5 LPH to 2500 LPM (model dependent)
| Параметр | Значение |
|---|---|
| Accuracy | ±0.5% of reading volumetric |
| Approvals | FM-US/FM-CA Class I Div 1 Groups ABCD; ATEX/IECEx II 2 G Ex db IIC T6…T3 Gb |
| Type | Hazardous-area oval-gear positive displacement flow meter (MX ExD / Simple Safe) |
| Repeatability | ±0.03% |
| Sizes | ¼ in to 4 in (MX06–MX100) |
| Flow Range | Approx. 0.5 LPH to 2500 LPM (model dependent) |
| Pressure | Up to ~2000 PSI on mid sizes; MX75/MX100 ~175 PSI cast aluminum |
| Temperature | ExD constructions to approx. 140 °C; Simple Safe PCB options to ~70 °C class |
| Outputs | NPN ExD pulser 5–27 VDC; Simple Safe Ex ia reed/display options (Fx/Gx/Hx) |
| Media | Clean process liquids only (no gas/solids) |
