Macnaught

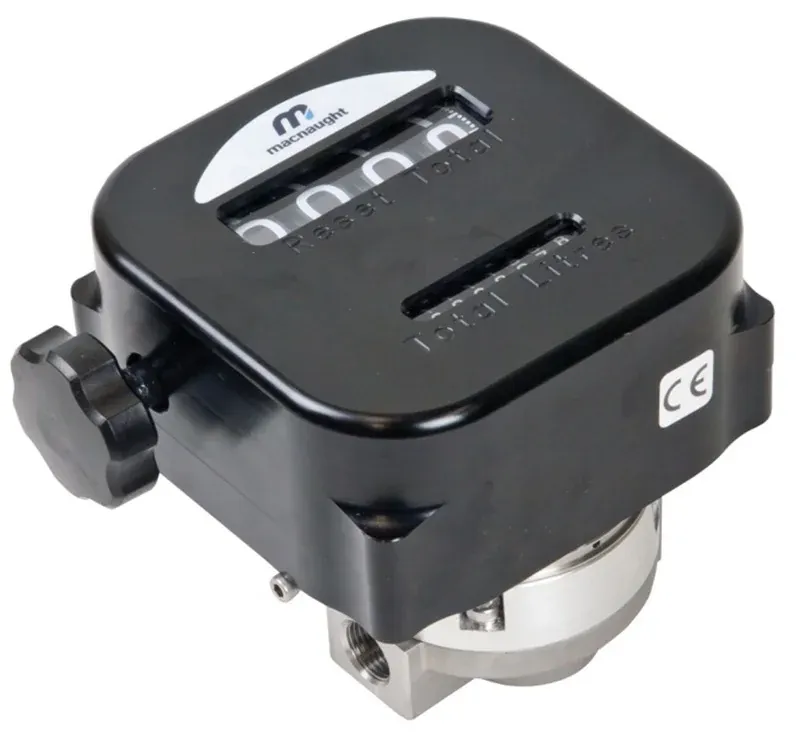

Macnaught M Series Positive Displacement Flow Meter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
+/-0.5% of reading (pulse); +/-1.0% of reading (mechanical register models)
Approvals
Intrinsically safe / explosion-proof models available on request
Type
Macnaught M Series cast-construction oval-gear positive displacement flow meter
Repeatability
+/-0.03%
Flow Range Family
About 0.13 GPH to 317 GPM across 1/4 in to 4 in sizes
Temperature
Standard about -40 to 80 C; high-temperature options higher (to about 120 C class)
| Параметр | Значение |
|---|---|
| Accuracy | +/-0.5% of reading (pulse); +/-1.0% of reading (mechanical register models) |
| Approvals | Intrinsically safe / explosion-proof models available on request |
| Type | Macnaught M Series cast-construction oval-gear positive displacement flow meter |
| Repeatability | +/-0.03% |
| Flow Range Family | About 0.13 GPH to 317 GPM across 1/4 in to 4 in sizes |
| Temperature | Standard about -40 to 80 C; high-temperature options higher (to about 120 C class) |
| Materials | Cast aluminium or stainless steel bodies; PPS or stainless rotors; Viton/PTFE seal options |
| Outputs | Standard pulse, standard mechanical register, heavy-duty mechanical register |
| Connections | BSP, NPT; flange kits for larger sizes |
| Installation | No flow conditioning required; compact lay length; suitable for viscous fluids |
| Document | Macnaught MX-Series & M-Series Positive Displacement Flow Meters cut sheet (OEM) |
