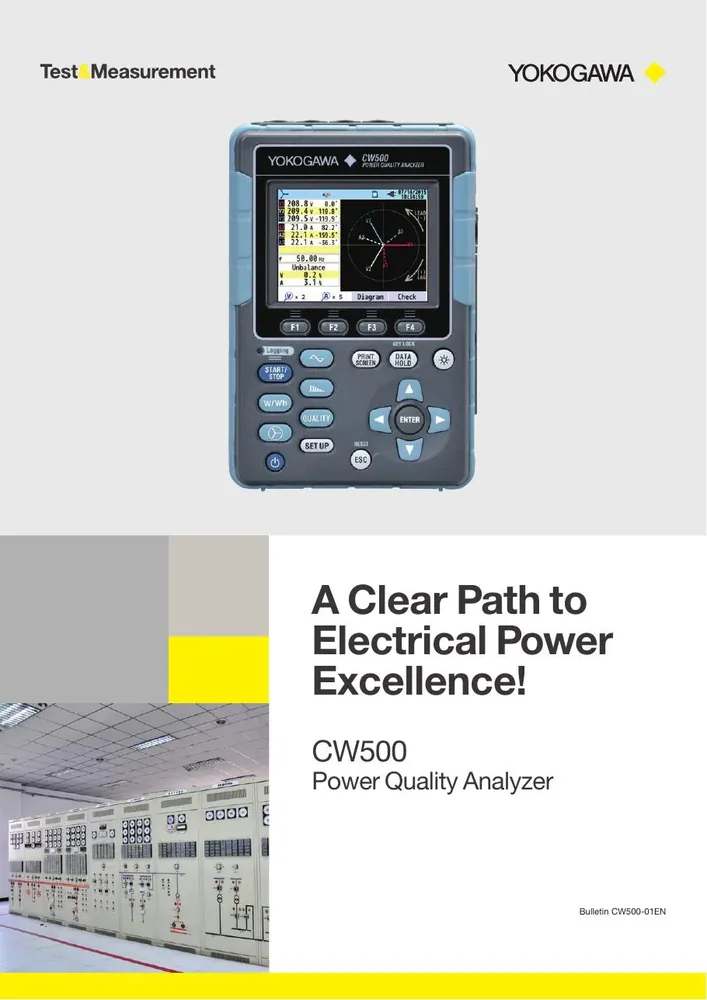

Yokogawa CW500 Power Quality Analyzer

SKU · 42730 · CW500 · Бренд: Yokogawa

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

Voltage RMS 600.0/1000 V ranges; current via clamp probes 96060–96066 (2 A to 3000 A types)

Accuracy

Voltage ±0.2% rdg ±0.2% rng (sine 40–70 Hz); current ±0.2% rdg ±0.2% rng + clamp accuracy; active power ±0.3% rdg ±0.2% rng + clamp (PF=1)

Output

Digital output; 2 CH analog DCV inputs; no process 4–20 mA transmitter output

Supply

AC 100–240 V 50/60 Hz 7 VA max; or 6× AA alkaline/NiMH (approx. 3 h LR6 backlight off)

Ambient temperature

Operating 0 to 45 °C, <85% RH; storage −20 to 60 °C

Display

3.5 in color TFT 320×240; update 1 s

Параметр	Значение
Measuring range	Voltage RMS 600.0/1000 V ranges; current via clamp probes 96060–96066 (2 A to 3000 A types)
Accuracy	Voltage ±0.2% rdg ±0.2% rng (sine 40–70 Hz); current ±0.2% rdg ±0.2% rng + clamp accuracy; active power ±0.3% rdg ±0.2% rng + clamp (PF=1)
Output	Digital output; 2 CH analog DCV inputs; no process 4–20 mA transmitter output
Supply	AC 100–240 V 50/60 Hz 7 VA max; or 6× AA alkaline/NiMH (approx. 3 h LR6 backlight off)
Ambient temperature	Operating 0 to 45 °C, <85% RH; storage −20 to 60 °C
Display	3.5 in color TFT 320×240; update 1 s
Communication	USB 2.0; SD card 2 GB; Bluetooth Ver 2.1+EDR Class2 on CW500-B1 (US/Canada/Japan)
Approvals	IEC 61000-4-30 Class S; IEC 61000-4-15; IEC 61000-4-7; EN 61326-1 Class A; FCC/IC (Bluetooth model)
Sensor type	Portable power quality analyzer with clamp-on current probes; IEC 61000-4-30 Ed.2 Class S
Notes	Specs from Yokogawa Bulletin CW500-01EN + IMCW500-01EN. Models CW500-B0 / CW500-B1.
Channels	3 CH voltage + 4 CH current clamp + 2 CH DCV; wiring 1P2W/1P3W/3P3W/3P4W
Harmonics	Up to 50th harmonic (voltage/current/power); IEC 61000-4-7
Power Quality Events	Swell / dip / interrupt / transient overvoltage / inrush; sampling 24 µs; IEC flicker Pst/Plt
Dimensions	120 (W) × 175 (H) × 68 (D) mm
Weight	Approx. 900 g with battery
Safety Rating	EN 61010-1 CAT IV 300 V / CAT III 600 V / CAT II 1000 V Pollution degree 2
