US Gauge

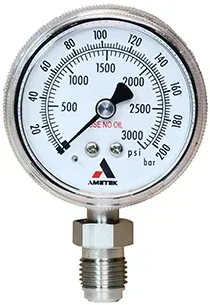

US Gauge Model 1536 Ultra High Purity Pressure Gauge
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
±1% of span
Type
Ultra-high-purity 2-inch stainless pressure gauge — Model 1536
Size
2 inch dial
Ranges
30 in Hg vacuum to 4000 psi (single/dual scale)
Materials
All 316L SST internals; drawn SST case with pressure relief
Connections
VCR face seal (MVCR/FVCR) or 1/4 in NPT; low-mount or center-back
| Параметр | Значение |
|---|---|
| Accuracy | ±1% of span |
| Type | Ultra-high-purity 2-inch stainless pressure gauge — Model 1536 |
| Size | 2 inch dial |
| Ranges | 30 in Hg vacuum to 4000 psi (single/dual scale) |
| Materials | All 316L SST internals; drawn SST case with pressure relief |
| Connections | VCR face seal (MVCR/FVCR) or 1/4 in NPT; low-mount or center-back |
| Surface Finish | VCR Ra 10 µin (0.25 µm); NPT 32 Ra |
| Leak Test | Helium leak tested < 10⁻⁹ scc/s |
| Cleanliness | Class 10 clean room assembled; N2 purged; double bagged |
| Document | Model 1536 UHP datasheet (AMETEK US Gauge) |
