Ametek Crystal

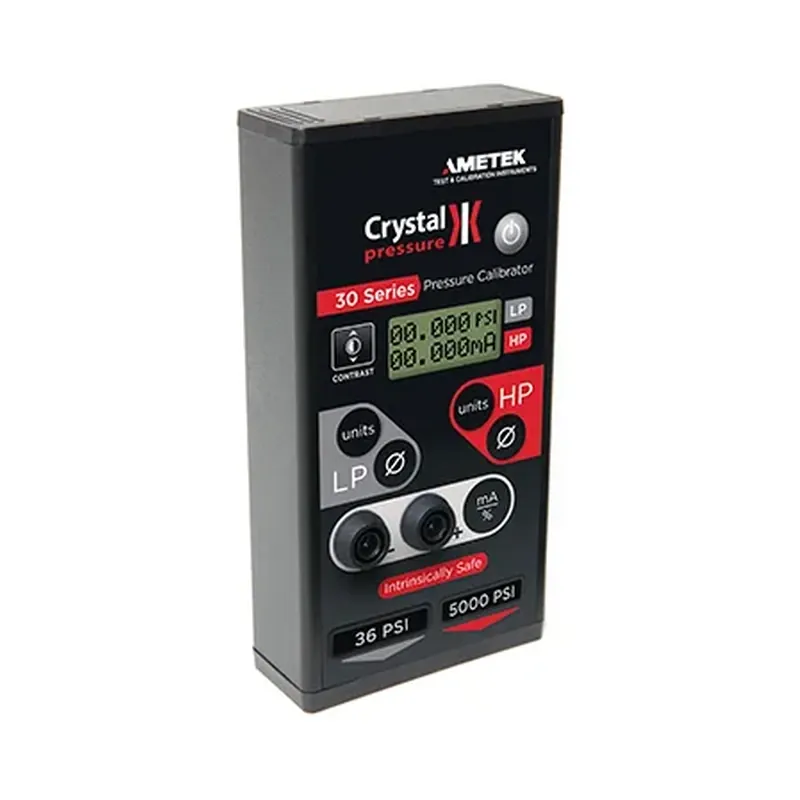

Ametek Crystal 30 Series Digital Pressure Calibrator
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Display
2-line 8-character LCD; ~2 readings/s (adjustable)
Type
Ultra-compact intrinsically safe digital pressure calibrator
Accuracy Pressure
±(0.05% of reading + floor term); floor 0.005% FS or display resolution
Pressure Range
Vacuum and pressure up to 5000 psi (300 bar) depending on model
Accuracy Ma
±(0.025% of reading + 0.001 mA); range 0–55 mA
Ports
Dual 1/8 in FNPT pressure ports; 4 mm banana jacks for mA
| Параметр | Значение |
|---|---|
| Display | 2-line 8-character LCD; ~2 readings/s (adjustable) |
| Type | Ultra-compact intrinsically safe digital pressure calibrator |
| Accuracy Pressure | ±(0.05% of reading + floor term); floor 0.005% FS or display resolution |
| Pressure Range | Vacuum and pressure up to 5000 psi (300 bar) depending on model |
| Accuracy Ma | ±(0.025% of reading + 0.001 mA); range 0–55 mA |
| Ports | Dual 1/8 in FNPT pressure ports; 4 mm banana jacks for mA |
| Power | Single 9 V battery; ~90 hours typical; micro-USB interface |
| Operating Temperature | 0…50 °C (32…122 °F); no accuracy shift over range when zeroed |
| Certifications | ATEX/IECEx Ex ia IIC T4; CSA Class I Div 1; DNV marine; EMC/PED |
| Size | Approx. 137×70×29 mm; pocket-sized |
| Application | Field transmitter calibration; pressure + mA indication |
| Document | 30 Series psi datasheet + 30 Series operation manual |
