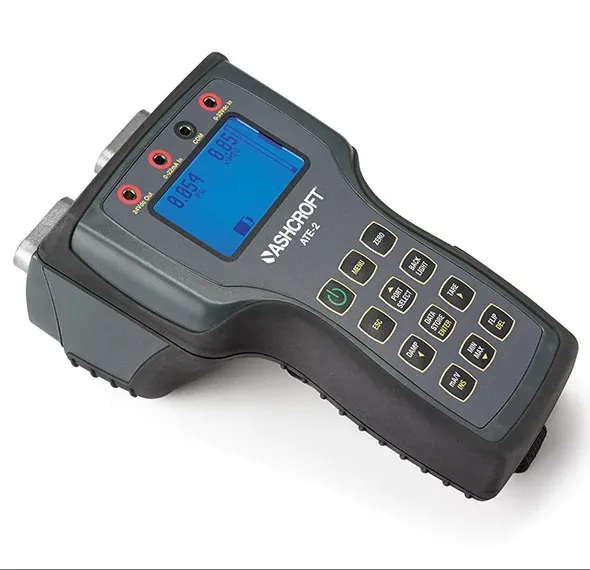

Ashcroft ATE-2 Handheld Calibrator

SKU · 42206 · ATE-2 · Бренд: Ashcroft

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

Pressure modules 0.25 in H2O to 10,000 psi; electrical 0–20 mA or 0–30 Vdc

Accuracy

Pressure modules ±0.025% to ±0.1% of span; electrical 0–10 Vdc ±0.025% span, 10–30 Vdc ±0.10% span, 0–20 mA ±0.03% span

Output

Measurement only; loop power supply 24 Vdc / 35 mA max (non-I.S.)

Supply

(4) AA batteries or USB / universal AC adapter 100–240 Vac 50/60 Hz

Process connection

Via interchangeable Quick-Select AM2 pressure modules (module-dependent)

Housing

High-impact PC-ABS

Параметр	Значение
Measuring range	Pressure modules 0.25 in H2O to 10,000 psi; electrical 0–20 mA or 0–30 Vdc
Accuracy	Pressure modules ±0.025% to ±0.1% of span; electrical 0–10 Vdc ±0.025% span, 10–30 Vdc ±0.10% span, 0–20 mA ±0.03% span
Output	Measurement only; loop power supply 24 Vdc / 35 mA max (non-I.S.)
Supply	(4) AA batteries or USB / universal AC adapter 100–240 Vac 50/60 Hz
Process connection	Via interchangeable Quick-Select AM2 pressure modules (module-dependent)
Housing	High-impact PC-ABS
Protection	IP65 / NEMA 4X
Ambient temperature	Operating −4 to 120 °F (−20 to 49 °C); storage −4 to 158 °F (−20 to 70 °C)
Display	LCD 2.5 in W × 1.5 in H; 3 simultaneous measurements; backlight; flip screen
Communication	USB Micro-B; SD memory card slot
Approvals	CE; UKCA; FCC CFR47; UL 61010-1; Optional FM/CSA/ATEX IS
Resolution	±0.001% span; 99,999 counts
Data Logging	Up to 64 logs / 16,000 records internal; intervals 0.1 s to 24 h
Battery Life	Up to 40 hours with 2 modules installed
Dimensions	8.7 in L × 5.1 in W × 3.8 in H
Weight	2.4 lb (no modules)
