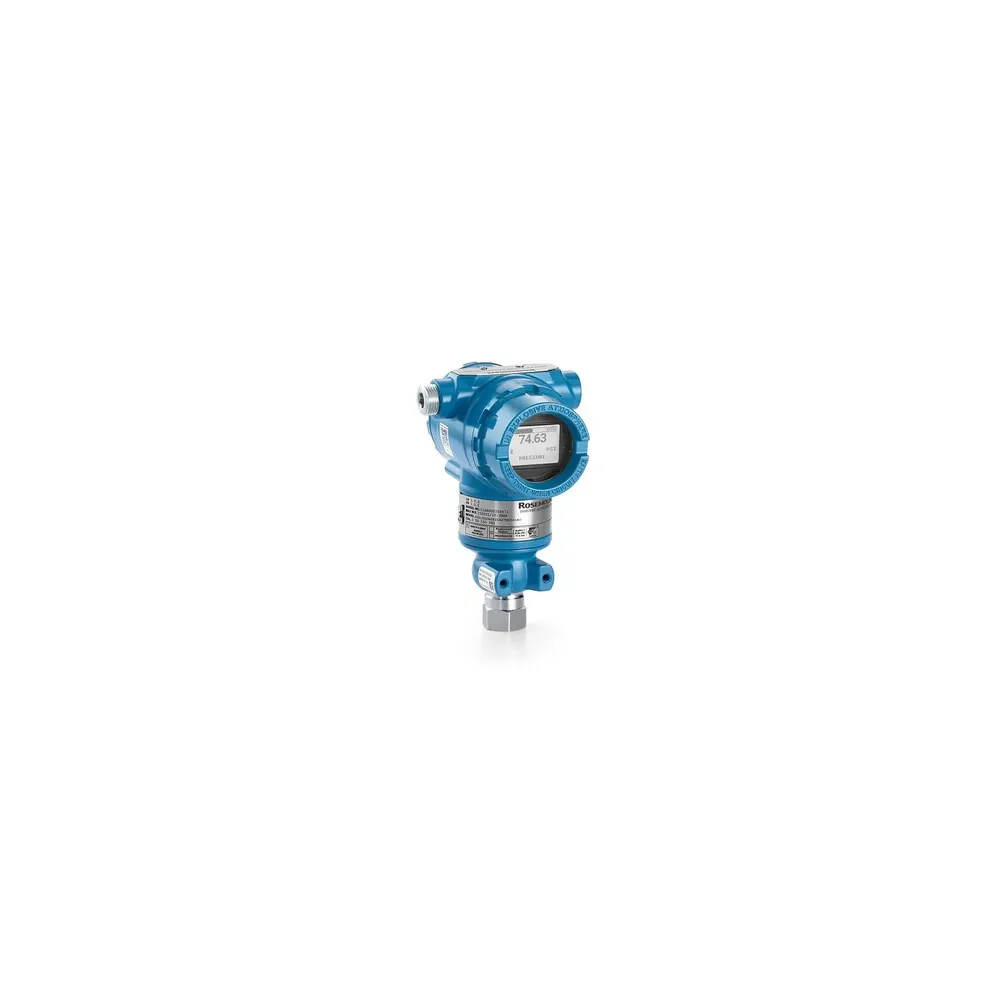

Rosemount 3051T In-Line Pressure Transmitter

SKU · 22334 · 3051T · Бренд: Rosemount

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

Gage −14.7…20000 psi (ranges 0–6); absolute 0…20000 psia (ranges 1–6) by range code

Accuracy

Reference accuracy 0.04% of span (3051 family; range-dependent tables in PDS)

Output

4–20 mA HART; FOUNDATION Fieldbus; PROFIBUS PA; WirelessHART; low-power 1–5 Vdc HART

Supply

10.5–42.4 Vdc (4–20 mA HART, no load); Fieldbus/PROFIBUS and wireless per PDS

Process connection

½–14 NPT female (2B); G½ A EN837-1 male (2C); autoclave F-250-C (2F, high ranges); non-threaded instrument flange (61)

Wetted parts

Isolating diaphragm 316L SST (std) or Alloy C-276; process connection wetted parts per order codes

Параметр	Значение
Measuring range	Gage −14.7…20000 psi (ranges 0–6); absolute 0…20000 psia (ranges 1–6) by range code
Accuracy	Reference accuracy 0.04% of span (3051 family; range-dependent tables in PDS)
Output	4–20 mA HART; FOUNDATION Fieldbus; PROFIBUS PA; WirelessHART; low-power 1–5 Vdc HART
Supply	10.5–42.4 Vdc (4–20 mA HART, no load); Fieldbus/PROFIBUS and wireless per PDS
Process connection	½–14 NPT female (2B); G½ A EN837-1 male (2C); autoclave F-250-C (2F, high ranges); non-threaded instrument flange (61)
Wetted parts	Isolating diaphragm 316L SST (std) or Alloy C-276; process connection wetted parts per order codes
Ambient temperature	−40…+85 °C (with display −40…+80 °C)
Pressure type	In-line gage or absolute (3051TG / 3051TA)
Communication	HART; FOUNDATION Fieldbus; PROFIBUS PA; WirelessHART; Bluetooth option
Approvals	SIL 2/3 (IEC 61508); ATEX; IECEx; FM; CSA; CE
Stability	10-year stability 0.2% of URL
Housing	Aluminum or SST (engineered polymer for wireless); Type 4X / IP65/66/68
