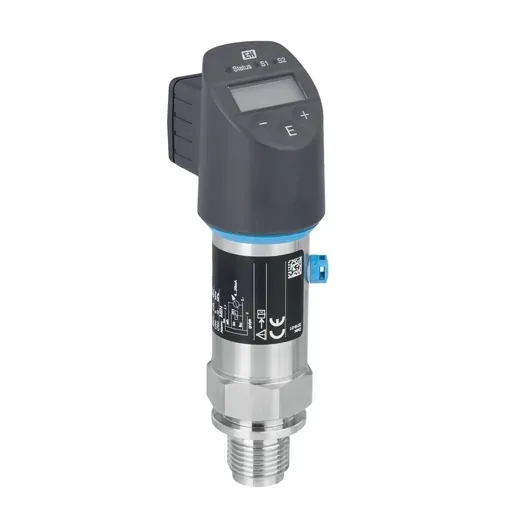

Endress+Hauser Ceraphant PTP31B Pressure Switch

SKU · 45740 · Ceraphant PTP31B · Бренд: Endress+Hauser

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

Gauge/absolute: from 0 to +400 mbar (0 to +6 psi) to 0 to +400 bar (0 to +5,800 psi); OPL to –1…+600 bar

Accuracy

Reference accuracy standard up to 0.5%; Platinum up to 0.3%

Output

1× PNP switch (3-wire); 2× PNP + IO-Link (4-wire); or 1× PNP + 4–20 mA + IO-Link (4-wire)

Supply

10–30 VDC analog / IO-Link (IO-Link guaranteed ≥18 V)

Process connection

Thread ISO 228 (incl. flush), ASME, DIN 13, JIS

Wetted parts

Housing and process connections 316L; metallic diaphragm 316L

Параметр	Значение
Measuring range	Gauge/absolute: from 0 to +400 mbar (0 to +6 psi) to 0 to +400 bar (0 to +5,800 psi); OPL to –1…+600 bar
Accuracy	Reference accuracy standard up to 0.5%; Platinum up to 0.3%
Output	1× PNP switch (3-wire); 2× PNP + IO-Link (4-wire); or 1× PNP + 4–20 mA + IO-Link (4-wire)
Supply	10–30 VDC analog / IO-Link (IO-Link guaranteed ≥18 V)
Process connection	Thread ISO 228 (incl. flush), ASME, DIN 13, JIS
Wetted parts	Housing and process connections 316L; metallic diaphragm 316L
Ambient temperature	–20 to +70 °C (–4 to +158 °F)
Sensor type	Metallic process membrane (316L); absolute and gauge pressure switch
Process Temperature	–40 to +100 °C (–40 to +212 °F) at process connection
Turn Down	Up to 5:1
