Endress+Hauser

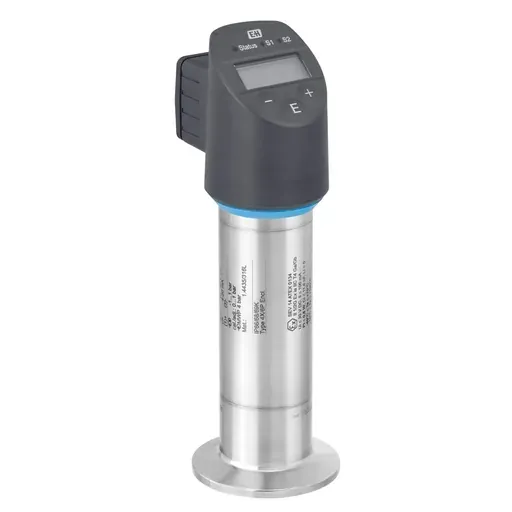

Endress+Hauser Ceraphant PTP33B Pressure Switch
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
Sensor ranges up to 40 bar (600 psi); customized spans; turn down up to 5:1
Accuracy
Reference accuracy up to 0.3%
Output
PNP switch and/or 4–20 mA; optional IO-Link (per order code)
Supply
10–30 VDC
Process connection
Hygienic threads/clamps (ISO/ASME/SMS/Varivent/Tri-Clamp/DIN 11851)
Ambient temperature
See TI ambient tables (typically −20…+70 °C class)
| Параметр | Значение |
|---|---|
| Measuring range | Sensor ranges up to 40 bar (600 psi); customized spans; turn down up to 5:1 |
| Accuracy | Reference accuracy up to 0.3% |
| Output | PNP switch and/or 4–20 mA; optional IO-Link (per order code) |
| Supply | 10–30 VDC |
| Process connection | Hygienic threads/clamps (ISO/ASME/SMS/Varivent/Tri-Clamp/DIN 11851) |
| Ambient temperature | See TI ambient tables (typically −20…+70 °C class) |
| Sensor type | Metallic process membrane 316L; absolute and gauge pressure switch |
| Process Temperature | −10 to +100 °C (+14 to +212 °F) typical hygienic metal membrane |
| Housing | 316L |
| Turn Down | Up to 5:1 |
| Hygienic | CIP/SIP suitable; 3-A / EHEDG family approvals per TI |
