Bently Nevada
Bently Nevada 3300 XL 11 mm Proximity Transducer System
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
Linear range approximately 4.0 mm (160 mils); frequency response 0–8 kHz typical
Output
Proximitor analog output for vibration/displacement/position/Keyphasor
Approvals
Hazardous-area options per datasheet ordering
Mounting
Machine-case proximity probe installation per Bently Nevada practices
Sensor type
Eddy-current proximity transducer (11 mm tip probe + Proximitor Sensor)
Notes

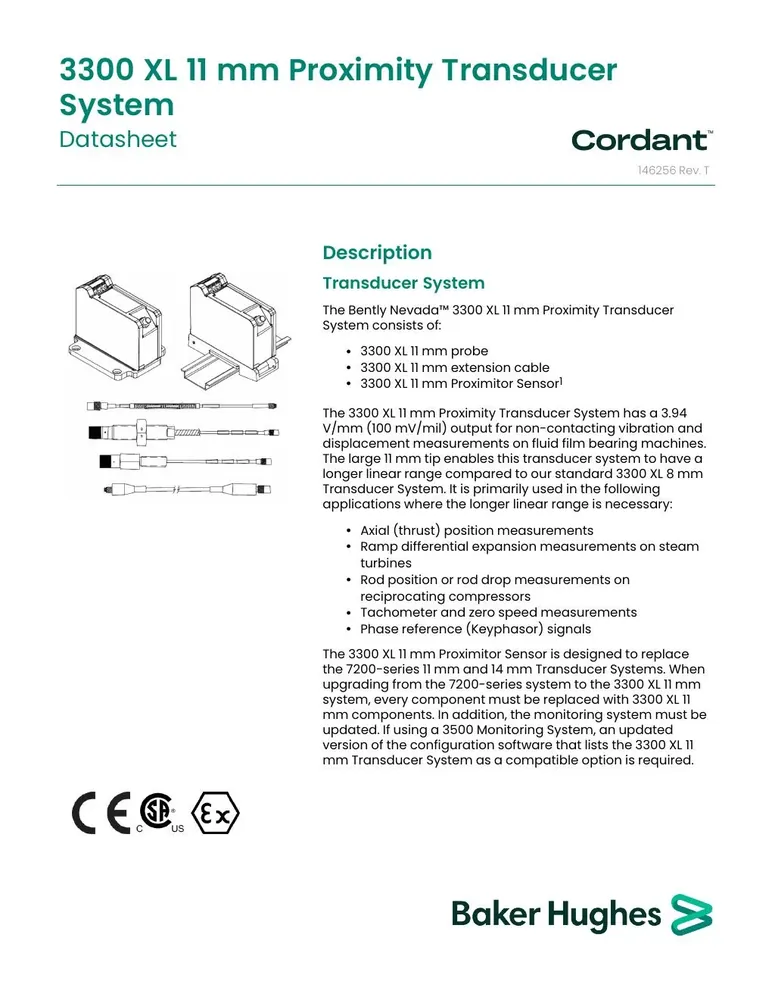

Specs from Bently Nevada 3300 XL 11 mm datasheet 146256 Rev.T. No Instrumart.
| Параметр | Значение |
|---|---|
| Measuring range | Linear range approximately 4.0 mm (160 mils); frequency response 0–8 kHz typical |
| Output | Proximitor analog output for vibration/displacement/position/Keyphasor |
| Approvals | Hazardous-area options per datasheet ordering |
| Mounting | Machine-case proximity probe installation per Bently Nevada practices |
| Sensor type | Eddy-current proximity transducer (11 mm tip probe + Proximitor Sensor) |
| Notes | Specs from Bently Nevada 3300 XL 11 mm datasheet 146256 Rev.T. No Instrumart. |
| Sensitivity | 3.94 V/mm (100 mV/mil) |
| Applications | Axial/thrust position, ramp differential expansion, rod position/drop, tachometer/zero speed, phase reference |
| Probe Temperature | Typical −35 °C to +120 °C probe range class per datasheet environmental section |
| Cable Option | CableLoc tip attachment (~330 N / 75 lb pull); optional FluidLoc and connector protectors |
| Compatibility | Designed to replace 7200-series 11 mm and 14 mm systems; monitor configuration update required |
| System Components | 3300 XL 11 mm probe, extension cable, and Proximitor Sensor (all must match) |
