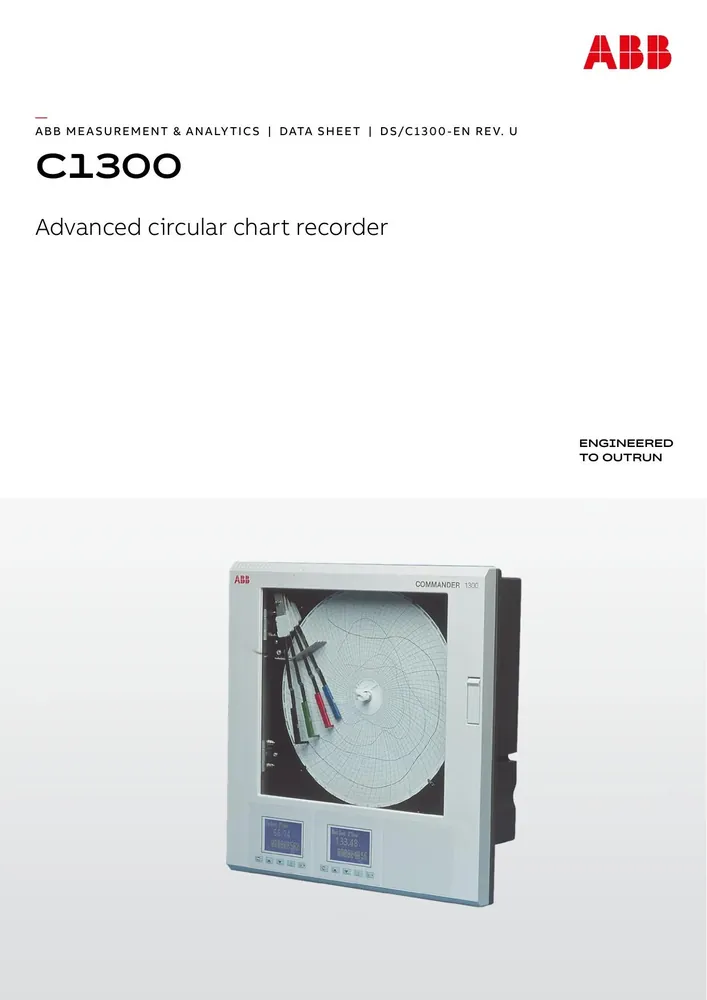

ABB C1300 Advanced Circular Chart Recorder

SKU · 33334 · C1300 · Бренд: ABB

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Accuracy

Temperature stability <0.02% of reading/°C or 1 µV; long-term drift <0.01% of reading or 10 µV annually

Supply

100–240 V AC ±10% (90–264 V), 50/60 Hz; <30 VA typical

Mounting

Panel, wall or pipe; glass-fiber reinforced polyester case

Channels

1–4 pens; up to 4 process signals; 10 in or 105 mm chart

Input Types

Universal analog per pen: thermocouple (B,E,J,K,N,R,S,T), RTD, mA, mV/V; 2-wire transmitter PSU; 2 digital inputs

Outputs

1 relay + 1 analog output per pen standard; expandable relays/digital I/O; optional Modbus RS485

Параметр	Значение
Accuracy	Temperature stability <0.02% of reading/°C or 1 µV; long-term drift <0.01% of reading or 10 µV annually
Supply	100–240 V AC ±10% (90–264 V), 50/60 Hz; <30 VA typical
Mounting	Panel, wall or pipe; glass-fiber reinforced polyester case
Channels	1–4 pens; up to 4 process signals; 10 in or 105 mm chart
Input Types	Universal analog per pen: thermocouple (B,E,J,K,N,R,S,T), RTD, mA, mV/V; 2-wire transmitter PSU; 2 digital inputs
Outputs	1 relay + 1 analog output per pen standard; expandable relays/digital I/O; optional Modbus RS485
Ingress Protection	NEMA 3 (IP54) standard; NEMA 4X / TYPE 4X optional (wall/pipe)
Operating Temperature	0 to 55 °C (32 to 130 °F); 5–95% RH non-condensing
Dimensions	386.8 × 382.0 × 135 mm (15.23 × 15.04 × 5.57 in)
Weight	8.2 kg (18 lb)
