ABB

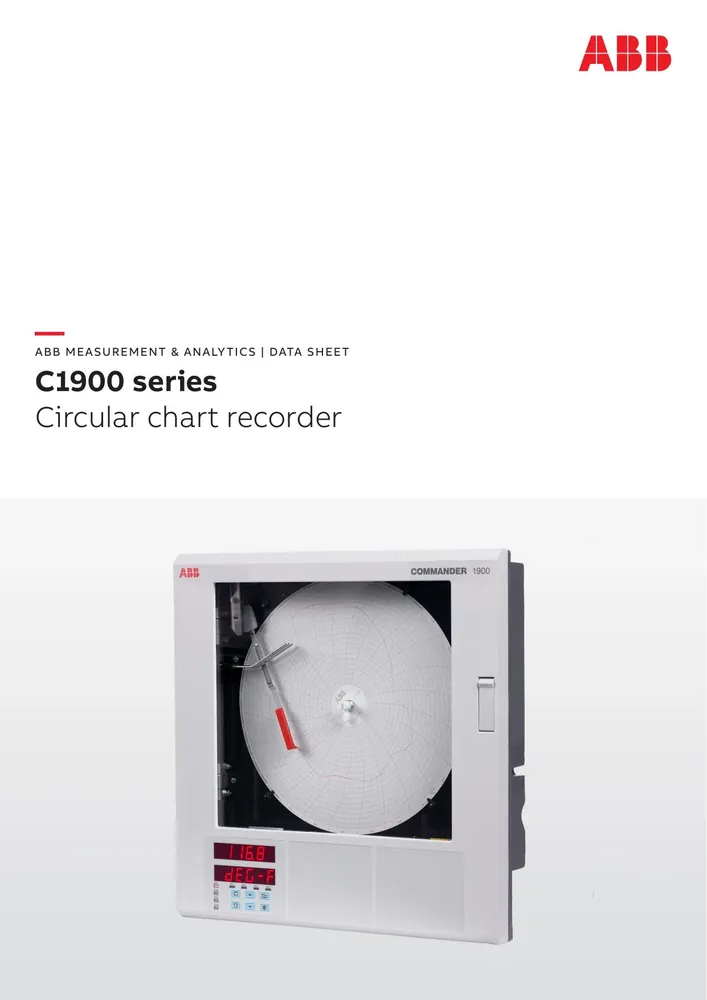

ABB C1900R Circular Chart Recorder
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
±0.1% measurement accuracy; chart rotation accuracy <0.5% of rotation time
Supply
100–240 V AC ±10%, 50/60 Hz
Mounting
Panel, wall or pipe mount
Channels
1–4 pen circular chart recording; 10 in or 105 mm chart; true-time event pen option
Input Types
Fully isolated analog input per pen (mV/V/mA/TC/RTD); transmitter PSU; 2 digital inputs; up to 5 plug-in I/O modules
Outputs
Relay and isolated analog retransmission standard; optional additional relays/digital I/O; Modbus RS485
| Параметр | Значение |
|---|---|
| Accuracy | ±0.1% measurement accuracy; chart rotation accuracy <0.5% of rotation time |
| Supply | 100–240 V AC ±10%, 50/60 Hz |
| Mounting | Panel, wall or pipe mount |
| Channels | 1–4 pen circular chart recording; 10 in or 105 mm chart; true-time event pen option |
| Input Types | Fully isolated analog input per pen (mV/V/mA/TC/RTD); transmitter PSU; 2 digital inputs; up to 5 plug-in I/O modules |
| Outputs | Relay and isolated analog retransmission standard; optional additional relays/digital I/O; Modbus RS485 |
| Functions | Totalizers, math, logic, timers/clock; high-visibility 6-digit displays |
| Ingress Protection | NEMA 4X / IP66 |
| Dimensions | 15.23 × 15.04 × 5.57 in (386.8 × 382.0 × 141.5 mm) |
