Hedland

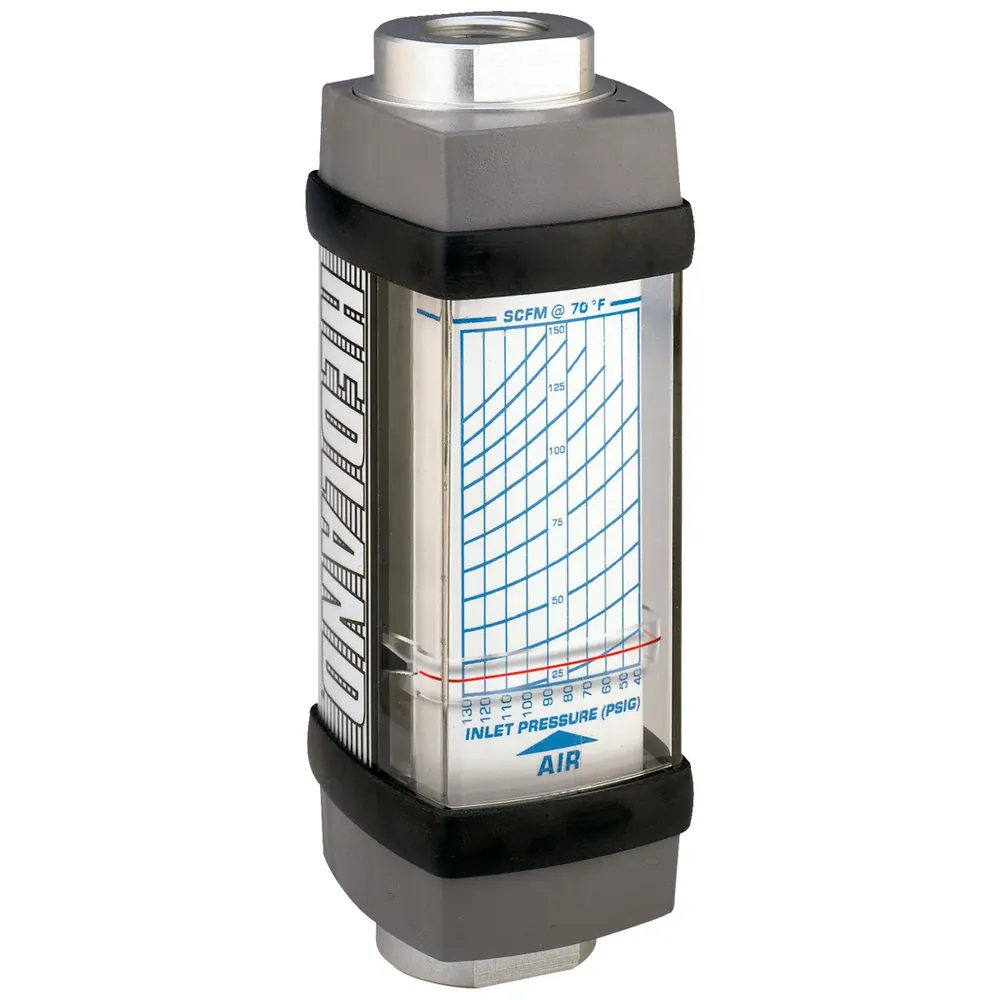

Hedland Flow Meter for Air and Compressed Gases
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Accuracy
±2% of full scale (±7% on ¼ in models)
Mounting
Inline installation; compressibility correction guidance in UM
Type
Inline pneumatic / air & compressed-gas variable-area flow meter
Size Range
6–80 mm (¼–3 in) connection sizes
Flow Range
0.2–1130 L/s (0.5–2200 scfm) typical family coverage
Temperature Range
−29…+116 °C (−20…+240 °F)
| Параметр | Значение |
|---|---|
| Accuracy | ±2% of full scale (±7% on ¼ in models) |
| Mounting | Inline installation; compressibility correction guidance in UM |
| Type | Inline pneumatic / air & compressed-gas variable-area flow meter |
| Size Range | 6–80 mm (¼–3 in) connection sizes |
| Flow Range | 0.2–1130 L/s (0.5–2200 scfm) typical family coverage |
| Temperature Range | −29…+116 °C (−20…+240 °F) |
| Pressure Range | Up to 103 bar (1500 psi) |
| Indication | Direct visual reading; multi-pressure and single-pressure scales |
| Media | Air and compressed gases (pneumatic systems, compressor efficiency, tools) |
| Document | Hedland VA product catalog + Inline Pneumatic Flow Meter UM VAM-UM-00593-EN |
| Application | Pneumatic system monitoring and compressed-air flow indication |
