MTL Instruments

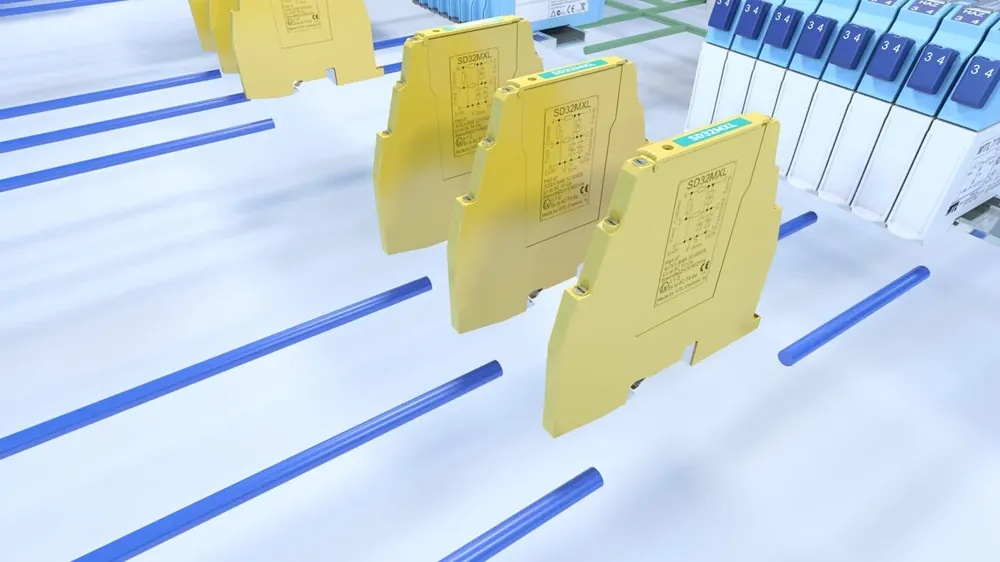

MTL SD Series Surge Protectors
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Mounting
Top-hat DIN rail with integral high-integrity earth
Type
DIN-rail hybrid surge protection modules (MTL SD Series)
Protection
Full hybrid line-to-line and each line to screen/ground
Imax
20 kA (8/20 µs) typical; 6.5 kA for SD150X/SD275X
Nominal Discharge
3 kA (8/20 µs) isn
Response Time
<1 ns
| Параметр | Значение |
|---|---|
| Mounting | Top-hat DIN rail with integral high-integrity earth |
| Type | DIN-rail hybrid surge protection modules (MTL SD Series) |
| Protection | Full hybrid line-to-line and each line to screen/ground |
| Imax | 20 kA (8/20 µs) typical; 6.5 kA for SD150X/SD275X |
| Nominal Discharge | 3 kA (8/20 µs) isn |
| Response Time | <1 ns |
| Nominal Voltages | SD07/16/32/55 family (7–55 Vdc class) plus AC/telephone variants |
| Bandwidth | 25 kHz standard; up to 50 MHz (R) / 720 kHz (T3) options |
| Ambient | −40 to +80 °C working/storage |
| Document | Eaton MTL EPS 901-107 Rev V |
