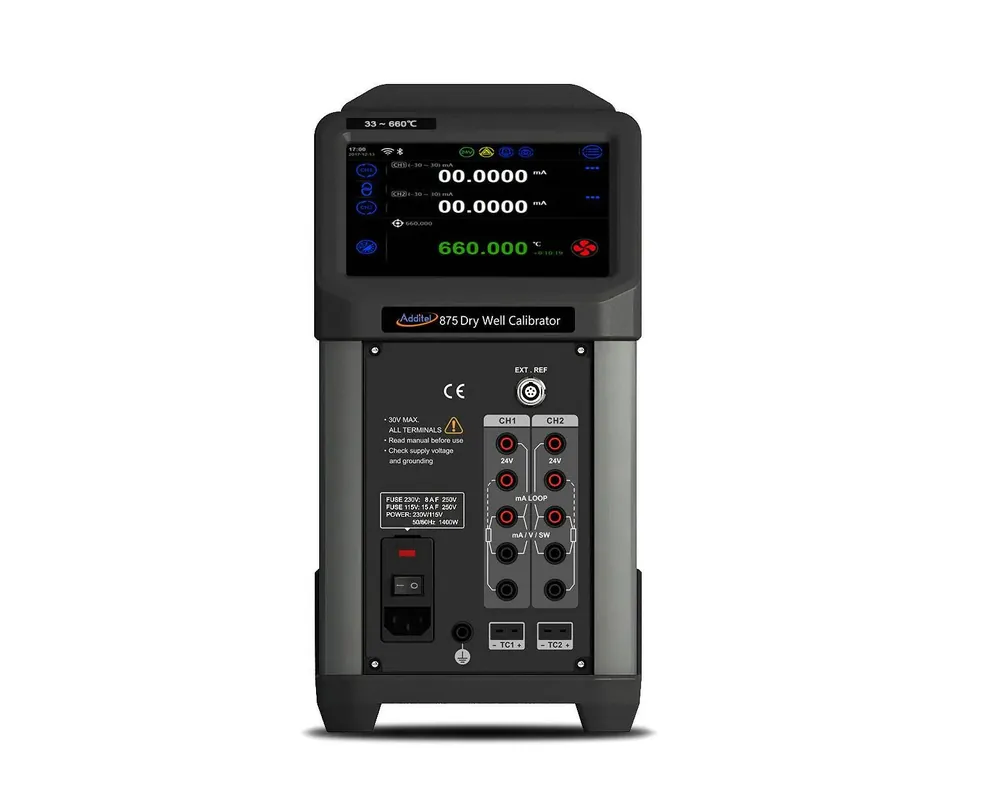

Additel ADT875 Dry Well Temperature Calibrator

SKU · 45342 · ADT875 · Бренд: Additel

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Measuring range

875-155: −40 to 155 °C; 875-350: 33 to 350 °C; 875-660: 33 to 660 °C (at 23 °C ambient)

Accuracy

Display accuracy ±0.18 °C (155) / ±0.2 °C (350) / up to ±0.5 °C at 660 °C

Display

6.5 in (165 mm) colour touch screen; 0.01 °C resolution; °C/°F/K

Approvals

ISO 17025 calibration with data included

Stability

±0.01 °C (155) / ±0.02 °C (350) / ±0.02–0.04 °C (660) over 30 min

Uniformity

Axial at 60 mm and radial uniformity metrology-level per model table

Параметр	Значение
Measuring range	875-155: −40 to 155 °C; 875-350: 33 to 350 °C; 875-660: 33 to 660 °C (at 23 °C ambient)
Accuracy	Display accuracy ±0.18 °C (155) / ±0.2 °C (350) / up to ±0.5 °C at 660 °C
Display	6.5 in (165 mm) colour touch screen; 0.01 °C resolution; °C/°F/K
Approvals	ISO 17025 calibration with data included
Stability	±0.01 °C (155) / ±0.02 °C (350) / ±0.02–0.04 °C (660) over 30 min
Uniformity	Axial at 60 mm and radial uniformity metrology-level per model table
Immersion Depth	145 mm (155 model) / 150 mm (350/660); insert OD 25.8 / 24.8 mm
Heating Time	≈10–15 min to full range depending on model
Power	90–254 VAC, 45–65 Hz; 580 W (155) / 1200 W (350/660)
Size Weight	320 × 170 × 330 mm; 9.9 kg (155) / 8.6 kg (350/660)
Comms	USB A, USB B, RJ45, WiFi, Bluetooth
Options	Process calibrator (PC) with 3-ch readout/HART; CYOR choose-your-own-range
Special Features	Dual-zone control; set-point by external reference; self-calibration; documenting tasks with PC option
