Druck

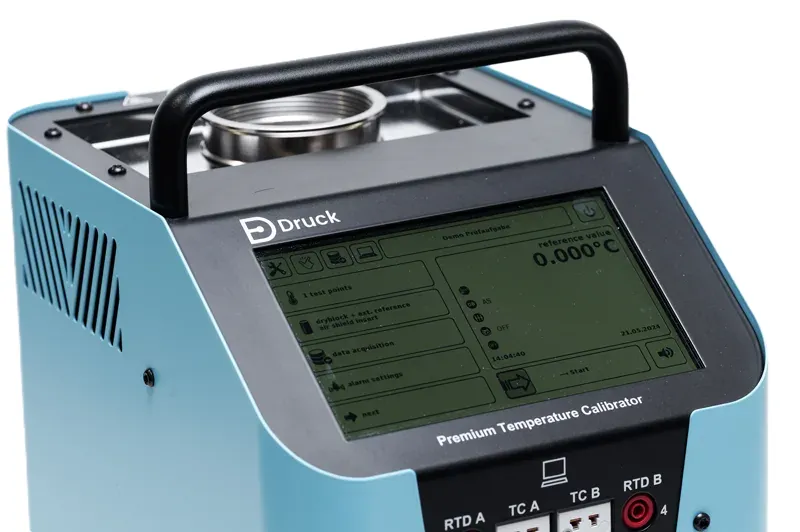

Druck PTC Series Multi-Function Temperature Calibrator
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
PTC165: −30 to 165 °C (−22 to 329 °F); PTC255: ambient to 255 °C (491 °F)
Accuracy
Dry-block display accuracy to ±0.08 °C (PTC255); resolution selectable 0.1 / 0.01 / 0.001 °C
Display
7 in color touchscreen multi-panel safety glass
Approvals
CE; UKCA; RCM; REACH; WEEE
Functions
Four-in-one: dry block, infrared, surface, and stirred calibration bath
Insert Size
Ø 60 × 170 mm exchangeable calibration insert
| Параметр | Значение |
|---|---|
| Measuring range | PTC165: −30 to 165 °C (−22 to 329 °F); PTC255: ambient to 255 °C (491 °F) |
| Accuracy | Dry-block display accuracy to ±0.08 °C (PTC255); resolution selectable 0.1 / 0.01 / 0.001 °C |
| Display | 7 in color touchscreen multi-panel safety glass |
| Approvals | CE; UKCA; RCM; REACH; WEEE |
| Functions | Four-in-one: dry block, infrared, surface, and stirred calibration bath |
| Insert Size | Ø 60 × 170 mm exchangeable calibration insert |
| Stability | Dry-block stability to ±0.010 °C (PTC255) |
| Interfaces | Ethernet and 3× USB; serial and HTTP connectivity |
| Power Supply | 110–115 V ac 60 Hz / 230 V ac 50 Hz; ~1100 W (PTC255) |
| Weight | Approx. 8.5 kg (PTC255) |
| Dimensions | 210 × 330(+50 handle) × 300 mm (W×H×D) |
| Options | Integrated measuring model (i versions); barcode scanner; camera auto-calibration |
| Special Features | Patented control for fast stabilisation; automatic calibration certificate generation |
| Form Factor | Portable multi-function premium temperature calibrator for lab and field |
