Rosemount

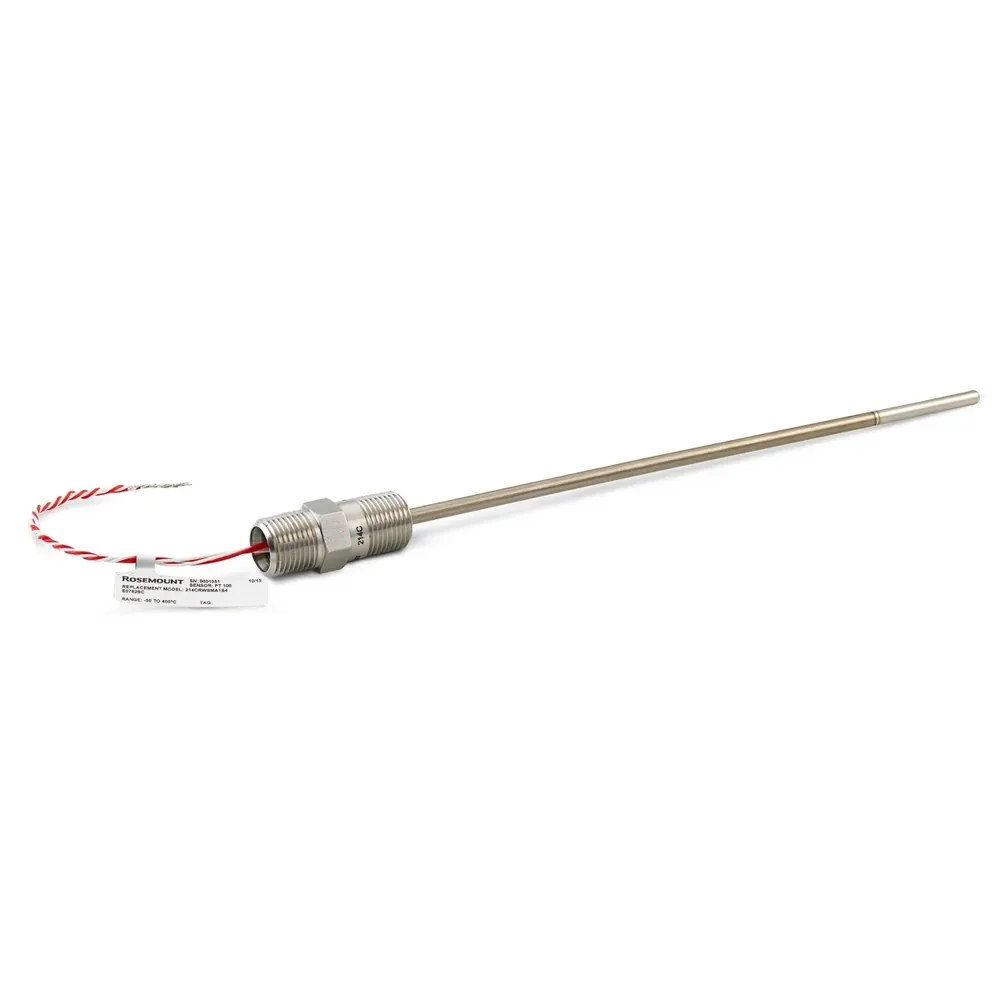

Rosemount 214C Thermocouple Temperature Sensor
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
Type-dependent: E −40…+900 °C; J −40…+760 °C; K/N −40…+1200 °C; T −196…+370 °C (family −196 to +1200 °C)
Accuracy
Class 1 or Class 2 per IEC 60584; Special Tolerances per ASTM E230 (order option)
Approvals
Global hazardous-location product approvals by option code
Mounting
Spring-loaded and compact spring-loaded styles; compression fittings / welded adapters
Sensor Types
Thermocouple Types E, J, K, N, T (IEC/ASTM)
Sheath Diameter
¼ in (6 mm) nominal MI cable standard
| Параметр | Значение |
|---|---|
| Measuring range | Type-dependent: E −40…+900 °C; J −40…+760 °C; K/N −40…+1200 °C; T −196…+370 °C (family −196 to +1200 °C) |
| Accuracy | Class 1 or Class 2 per IEC 60584; Special Tolerances per ASTM E230 (order option) |
| Approvals | Global hazardous-location product approvals by option code |
| Mounting | Spring-loaded and compact spring-loaded styles; compression fittings / welded adapters |
| Sensor Types | Thermocouple Types E, J, K, N, T (IEC/ASTM) |
| Sheath Diameter | ¼ in (6 mm) nominal MI cable standard |
| Sheath Material | Standard sheath materials defined by sensor type (PDS Table 3) |
| Element Configuration | Single or dual; grounded or ungrounded junctions |
| Lead Wires | 24 AWG FEP-insulated, color-coded per IEC 60584 or ASTM E230 |
| Insulation Resistance | 1000 MΩ minimum at 500 VDC at room temperature |
| Vibration | Engineered for high-vibration industrial service |
| Form Factor | Sensor-only or Complete Point Solution with transmitter/thermowell assembly |
| Calibration | Calibration services / certificate options available |
