Watlow Ring Terminal Thermocouple Style 70
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Measuring range
Fiberglass leads continuous to 480 °C (900 °F); PFA typically to 260 °C (500 °F)
Accuracy
Standard ASTM E230 thermocouple tolerances (type/temperature dependent)
Sensor type
Thermocouple types J, K, T, E; grounded standard; ungrounded only with 24-gauge wire
Construction Style

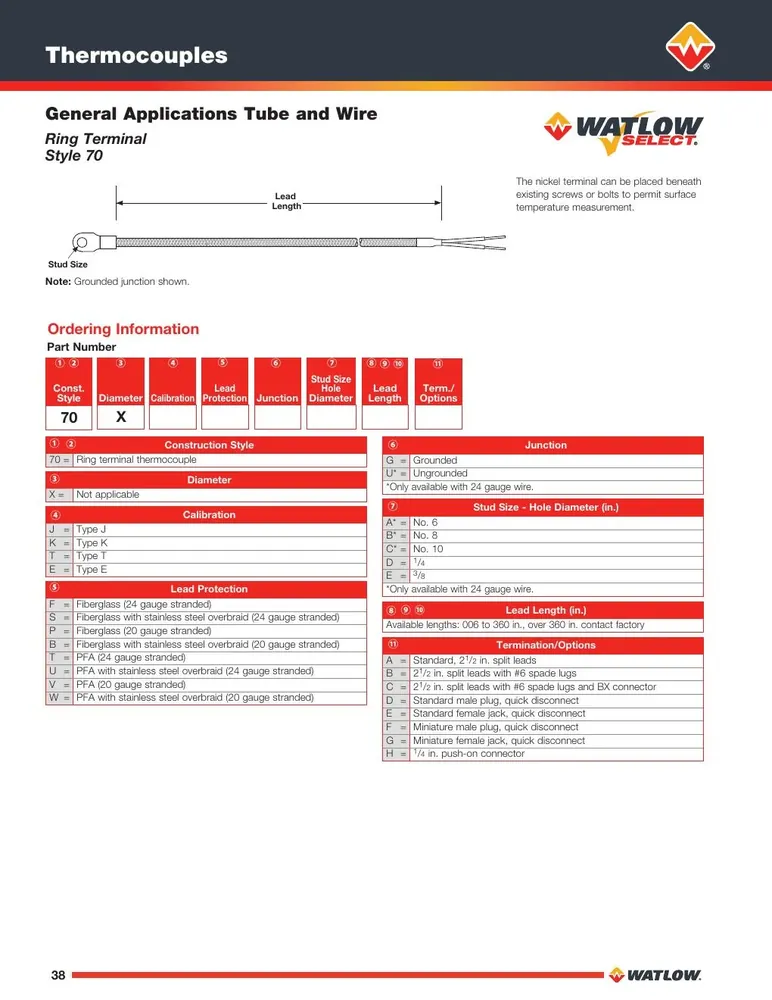

Style 70 ring terminal thermocouple
Stud Hole Sizes
A No.6; B No.8; C No.10; D 1/4 in; E 3/8 in (A–C 24-gauge only)
Terminal
Nickel ring terminal for mounting under screws/bolts
| Параметр | Значение |
|---|---|
| Measuring range | Fiberglass leads continuous to 480 °C (900 °F); PFA typically to 260 °C (500 °F) |
| Accuracy | Standard ASTM E230 thermocouple tolerances (type/temperature dependent) |
| Sensor type | Thermocouple types J, K, T, E; grounded standard; ungrounded only with 24-gauge wire |
| Construction Style | Style 70 ring terminal thermocouple |
| Stud Hole Sizes | A No.6; B No.8; C No.10; D 1/4 in; E 3/8 in (A–C 24-gauge only) |
| Terminal | Nickel ring terminal for mounting under screws/bolts |
| Lead Protection | Fiberglass or PFA, plain or with stainless steel overbraid (20/24 gauge) |
| Lead Length | 6 to 360 in (over 360 in contact factory) |
| Terminations | Split leads, #6 spade lugs, BX, standard/miniature plugs/jacks, ¼ in push-on |
| Applications | Surface temperature under fasteners; equipment skin; industrial heaters |
| Special Features | Mounts beneath existing screws/bolts without process penetration |
| Catalog Family | Watlow general applications tube-and-wire thermocouples |
