Georg Fischer / GF Signet
GF Piping Systems Type 375 PVC-U Ball Valve
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM

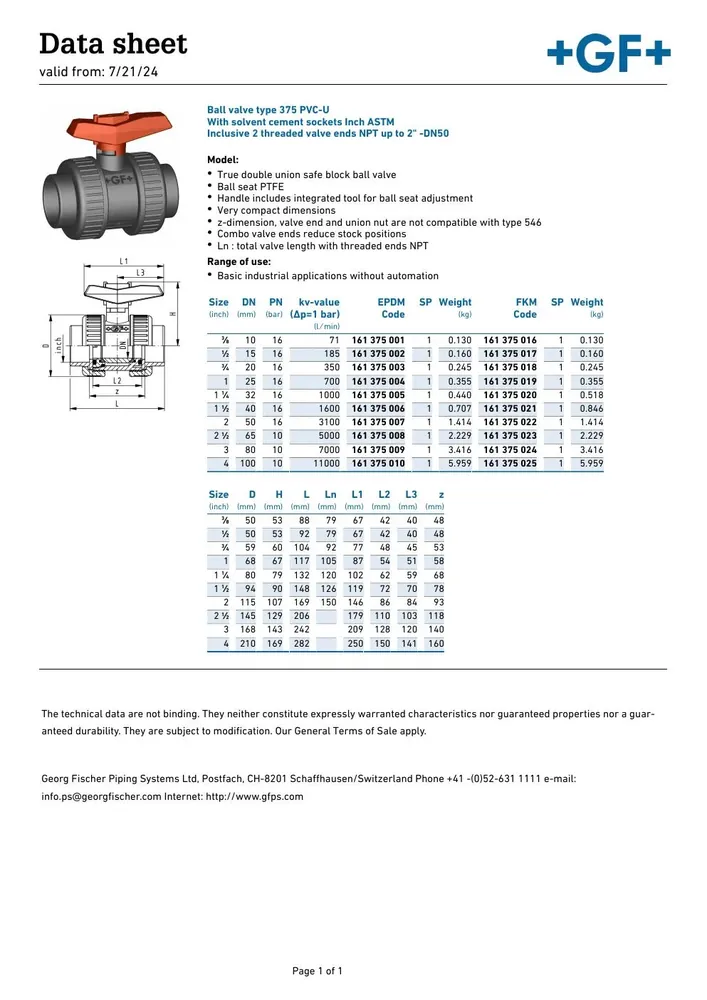

Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Valve Type
True double-union safe-block ball valve
Body Material
PVC-U (PVC-C / PE100 variants available)
Ball Seat
PTFE
Seal Options
EPDM or FKM
Size Range Astm
3/8 in to 4 in (DN10–DN100); combo socket+NPT up to 2 in
Pressure Rating
PN16 (16 bar) up to DN50 / 2 in; PN10 (10 bar) DN65–DN100
| Параметр | Значение |
|---|---|
| Valve Type | True double-union safe-block ball valve |
| Body Material | PVC-U (PVC-C / PE100 variants available) |
| Ball Seat | PTFE |
| Seal Options | EPDM or FKM |
| Size Range Astm | 3/8 in to 4 in (DN10–DN100); combo socket+NPT up to 2 in |
| Pressure Rating | PN16 (16 bar) up to DN50 / 2 in; PN10 (10 bar) DN65–DN100 |
| Kv Range | 71 to 11000 l/min (Δp=1 bar) across size range |
| End Connections | Solvent cement sockets Inch ASTM + inclusive NPT threaded ends to 2 in |
| Handle | Lever with integrated tool for ball seat adjustment |
| Compatibility Note | z-dimension, valve end and union nut not compatible with Type 546 |
| Range Of Use | Basic industrial applications without automation |
| Example Weight 1in | Approx. 0.355 kg (EPDM / FKM code 161 375 004 / 019) |
| Example Dimensions 1in | D 68 mm; H 67 mm; L 117 mm; Ln 105 mm; z 58 mm |
| Manufacturer | Georg Fischer Piping Systems Ltd, Schaffhausen |
