Georg Fischer / GF Signet

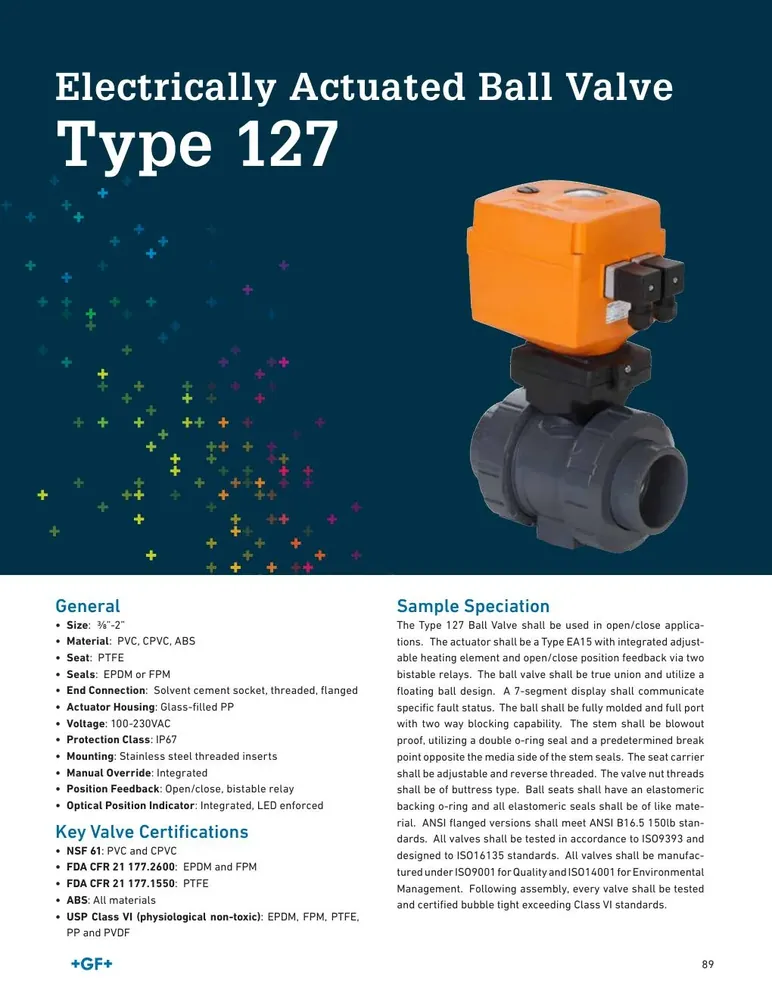

Georg Fischer Type 127 Electrically Actuated Ball Valve
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Supply
100–230 VAC 50/60 Hz (±15%); optional 24 VAC/DC
Ambient temperature
14 to 122 °F (−10 to 50 °C) with heating element for condensation
Approvals
NSF 61 (PVC/CPVC); FDA CFR 21 elastomers/PTFE; UL 61010-1 / CSA C22.2; CE
Notes
Specs from GF Type 127 US datasheet and EA15-250 operating instructions 2008328. No Instrumart.
Size Range
⅜ in to 2 in (DN10–DN50)
Body Materials
PVC, CPVC, or ABS; PTFE seats; EPDM or FPM seals
| Параметр | Значение |
|---|---|
| Supply | 100–230 VAC 50/60 Hz (±15%); optional 24 VAC/DC |
| Ambient temperature | 14 to 122 °F (−10 to 50 °C) with heating element for condensation |
| Approvals | NSF 61 (PVC/CPVC); FDA CFR 21 elastomers/PTFE; UL 61010-1 / CSA C22.2; CE |
| Notes | Specs from GF Type 127 US datasheet and EA15-250 operating instructions 2008328. No Instrumart. |
| Size Range | ⅜ in to 2 in (DN10–DN50) |
| Body Materials | PVC, CPVC, or ABS; PTFE seats; EPDM or FPM seals |
| End Connections | Solvent cement socket, threaded, or flanged (ANSI B16.5 150 lb) |
| Actuator | Type EA15 electric actuator with integrated heating element and open/close bistable feedback |
| Cycle Time | 5 s / 90° |
| Duty Cycle | 40% |
| Protection Rating | IP67 (EN 60529); UL/CSA NEMA 4X |
| Position Feedback | Bi-stable relays 250 V / 2 A; optical LED position indicator |
| Manual Override | Integrated emergency manual override |
| Nominal Output | 35 VA; ~0.3 A @ 100 VAC / 0.13 A @ 230 VAC |
| Pressure Rating | PN10 (typical per size tables on OEM datasheets) |
