Granzow

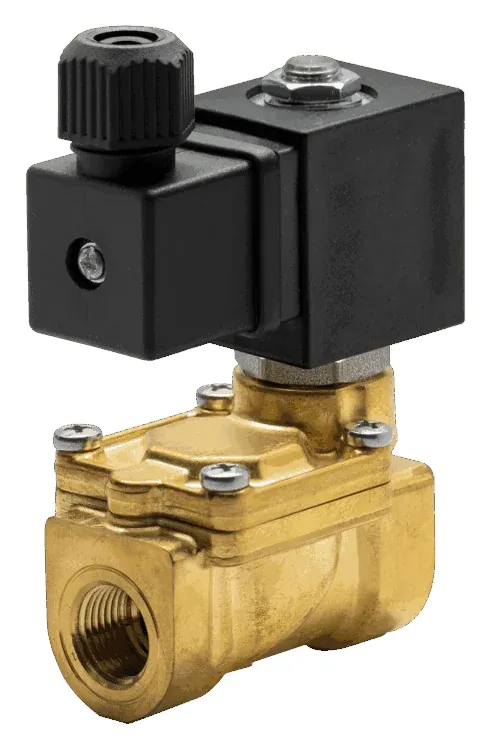

Granzow W Series High-Flow Solenoid Valves
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Type
2-way internally piloted high-flow solenoid valve family (Series W)
Pipe Sizes
3/8 in to 3 in NPT (representative model W6H12-0Z0: 1 in NPT)
Operating Pressure
About 2-230 psi class (model-dependent; W6H12-0Z0 3-230 psi)
Flow
Cv about 4.1 to 96.6 across series (W6H12-0Z0 13 Cv)
Operation
2/2-way normally open or normally closed; pilot operated
Body Seal
Brass body; NBR / FKM / EPDM seal options
| Параметр | Значение |
|---|---|
| Type | 2-way internally piloted high-flow solenoid valve family (Series W) |
| Pipe Sizes | 3/8 in to 3 in NPT (representative model W6H12-0Z0: 1 in NPT) |
| Operating Pressure | About 2-230 psi class (model-dependent; W6H12-0Z0 3-230 psi) |
| Flow | Cv about 4.1 to 96.6 across series (W6H12-0Z0 13 Cv) |
| Operation | 2/2-way normally open or normally closed; pilot operated |
| Body Seal | Brass body; NBR / FKM / EPDM seal options |
| Enclosure | NEMA 4 / IP65 coil class (model-dependent) |
| Media | Air, inert gas, water (seal-dependent); media viscosity example 12 cSt |
| Media Temp | About 15-195 F (NBR class); ambient about -5-140 F |
| Document | Granzow Series W model datasheet W6H12-0Z0 (OEM granzow.com) |
