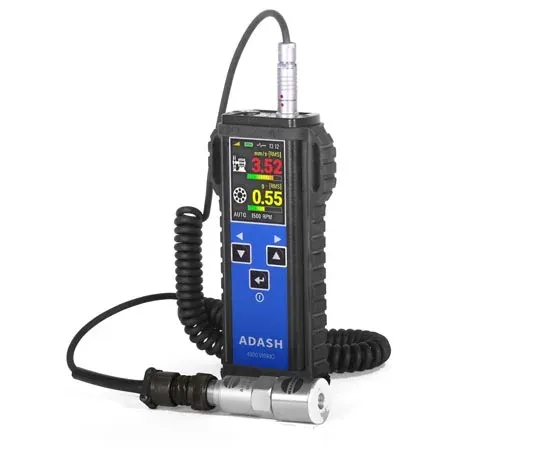

Adash A4900 VIBRIO Vibration Analyzer Kit
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Display
Color TFT 240x320, 2.2 in diagonal, sunlight readable
Type
Portable vibration meter / analyzer / data collector (A4900 Vibrio M)
Input
1x ICP accelerometer; 60 g PEAK with standard 100 mV/g sensor
Measurements
Velocity RMS/Peak 10-1000 Hz; acceleration 500-16000 Hz; displacement 2-100 Hz; envelope demod
Fft
Velocity/acceleration spectra up to 800 lines; optional DDS route software
Temperature
Non-contact IR -70 to 380 C; LED stroboscope 10-18000 RPM
| Параметр | Значение |
|---|---|
| Display | Color TFT 240x320, 2.2 in diagonal, sunlight readable |
| Type | Portable vibration meter / analyzer / data collector (A4900 Vibrio M) |
| Input | 1x ICP accelerometer; 60 g PEAK with standard 100 mV/g sensor |
| Measurements | Velocity RMS/Peak 10-1000 Hz; acceleration 500-16000 Hz; displacement 2-100 Hz; envelope demod |
| Fft | Velocity/acceleration spectra up to 800 lines; optional DDS route software |
| Temperature | Non-contact IR -70 to 380 C; LED stroboscope 10-18000 RPM |
| Memory | 4 MB; about 900 spectra of 800 lines or 2048-sample time signals |
| Power | Rechargeable Li-Ion; about 16 h continuous; USB-C charging |
| Size Weight | 170 x 85 x 40 mm; about 380 g without sensor / 590 g with kit |
| Document | Adash A4900 Vibrio 2025 datasheet |
