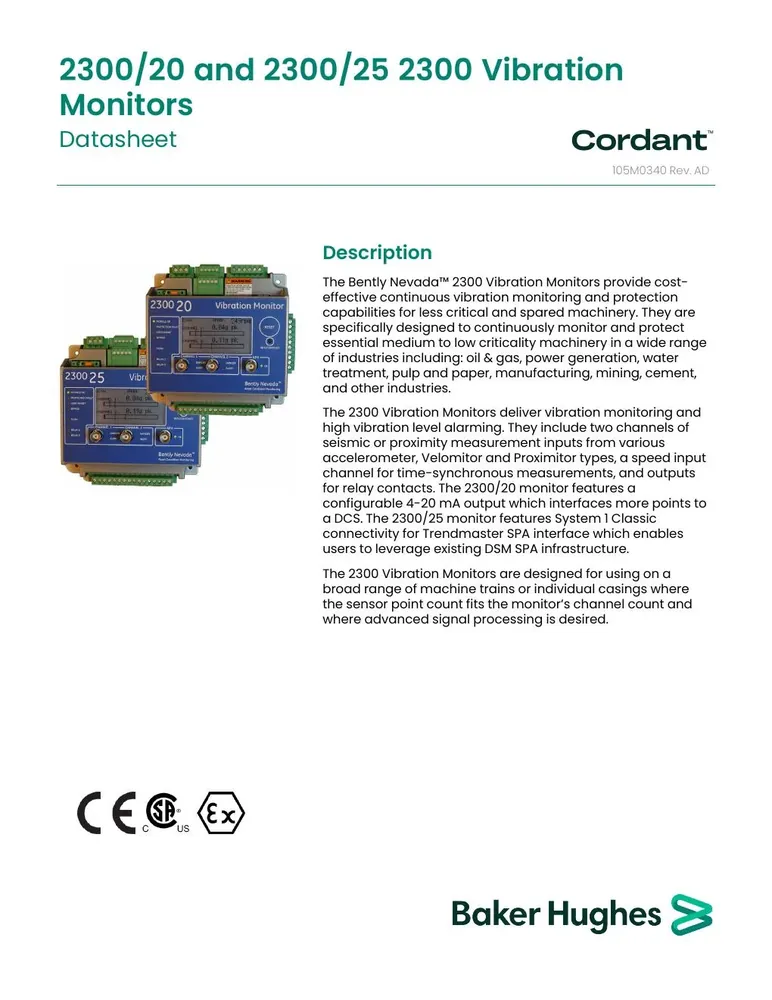

Bently Nevada 2300/20 and 2300/25 Vibration Monitors

SKU · 42557 · 2300 Series Vibration Monitor · Бренд: Bently Nevada

В наличии

Цена по запросу

Без онлайн-оплаты · строки в RFQ BOM

Кол-во

RFQ только BOM. Отправьте для инженерного КП.

Ключевые параметры

Accuracy

±1% of full scale range (channel/ADC)

Display

LCD and LED for real-time values and status

Models

2300/20 (dual 4–20 mA) and 2300/25 (Trendmaster SPA / System 1 Classic)

Vibration Inputs

2 channels acceleration/velocity/proximity with synchronized sampling

Speed Channel

1 dedicated speed/Keyphasor (proximity, magnetic pickup, or proximity switch) up to 20 kHz events

Measurements

Acceleration pk/rms, velocity pk/rms, displacement pp/rms, speed; bandpass and nX options

Параметр	Значение
Accuracy	±1% of full scale range (channel/ADC)
Display	LCD and LED for real-time values and status
Models	2300/20 (dual 4–20 mA) and 2300/25 (Trendmaster SPA / System 1 Classic)
Vibration Inputs	2 channels acceleration/velocity/proximity with synchronized sampling
Speed Channel	1 dedicated speed/Keyphasor (proximity, magnetic pickup, or proximity switch) up to 20 kHz events
Measurements	Acceleration pk/rms, velocity pk/rms, displacement pp/rms, speed; bandpass and nX options
Power Input	18–36 Vdc, max 7.5 W
Icp Bandpass	Configurable 0.2 Hz–20 kHz; scale factor 5–1000 mV/g; full scale 2–80 g peak
Velocity Range	Scale factor 5–1000 mV/in/s; full scale 0–50 in/s peak
Outputs	Two programmable relays; three buffered BNC transducer outputs incl. Keyphasor; Modbus over Ethernet
Communications	Ethernet 10/100 Base-T for configuration; Modbus/TCP
Operating Temperature	−30°C to +65°C
Dimensions Weight	127 × 127 × 76.2 mm; 1.03 kg (2.26 lb)
Alarm Capture	Alarm data capture supported
