Endress+Hauser

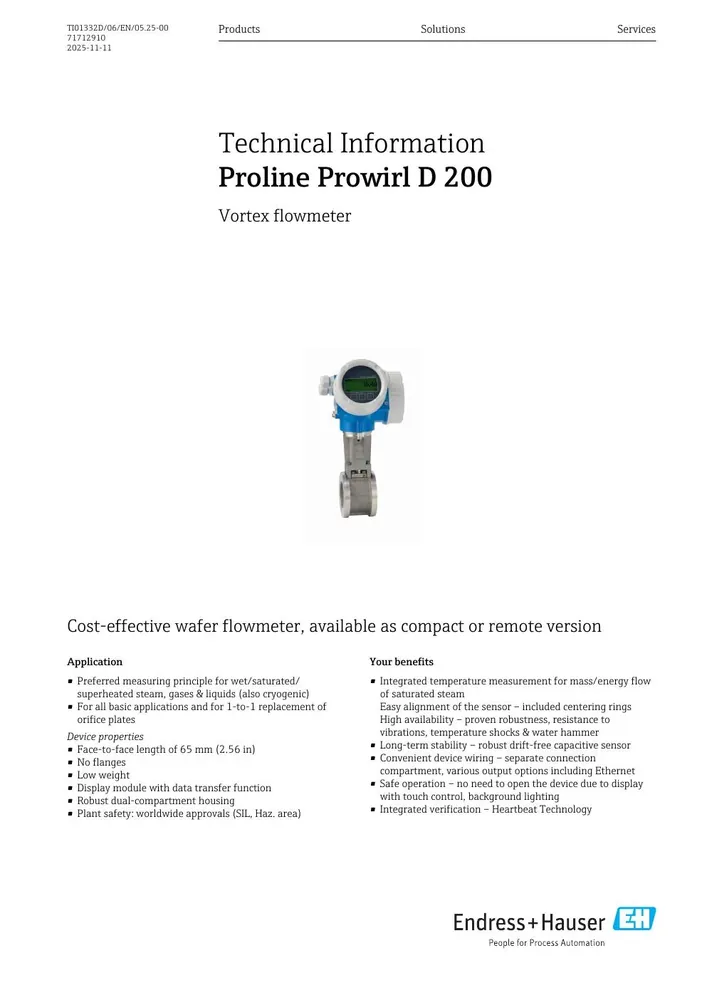

Endress+Hauser Proline Prowirl D 200 Vortex Flow Meter
Цена по запросу
Без онлайн-оплаты · строки в RFQ BOM
Скачать datasheet PDF
RFQ только BOM. Отправьте для инженерного КП.
Ключевые параметры
Wetted parts
Stainless steel CF3M/1.4408 measuring tube
Protection
IP66/67, Type 4X enclosure
Approvals
SIL and worldwide Haz.area options
Measuring Principle
Karman vortex street
Nominal Diameter
DN 15 to 150 (½ to 6") wafer (disc)
Face To Face
65 mm (2.56 in)
| Параметр | Значение |
|---|---|
| Wetted parts | Stainless steel CF3M/1.4408 measuring tube |
| Protection | IP66/67, Type 4X enclosure |
| Approvals | SIL and worldwide Haz.area options |
| Measuring Principle | Karman vortex street |
| Nominal Diameter | DN 15 to 150 (½ to 6") wafer (disc) |
| Face To Face | 65 mm (2.56 in) |
| Volume Flow Accuracy Liquid | < 0.75 % (Re2 to Remax, incompressible, standard) |
| Volume Flow Accuracy Gas Steam | < 1.0 % (Re2 to Remax, compressible, standard) |
| Medium Temperature Range | Standard and high-temperature DSC sensor options per TI (typ. –40/+260 °C; HT to +400 °C) |
| Process Connections | Wafer between EN 1092-1 PN 10/16/25/40 or ASME B16.5 Class 150/300 flanges |
| Outputs | 4–20 mA HART; pulse/frequency/switch; Ethernet options |
| Power Supply | Loop-powered Proline 200 |
| Special Features | Low weight wafer body; centering rings; Heartbeat Technology |
